Product Details:
Payment & Shipping Terms:
|
| Product Name:: | 25 KVA 220 V Induction Bearing Heater | Vertical Heating Inner Hole: | 80-180mm |
|---|---|---|---|
| Horizontal Heating Inner Bore: | 180-500mm | Maximum Outer Diameter: | 750mm |
| Maximum Width: | 280mm | Apparent Power: | 25KVA |
| Current: | 66A | Load Bearing: | 300KG |
| Magnetic Probe: | K Type ( Accuracy: ±5 ℃) | Warranty: | One Year |
| High Light: | 220V Induction Bearing Heater,25KVA Induction Bearing Heater,induction heater for bearing fitting |
||

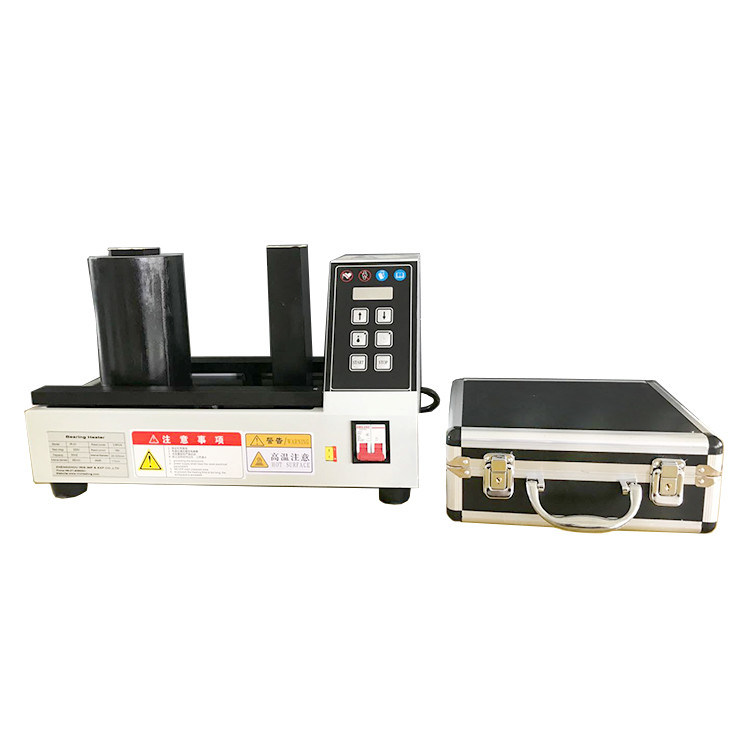

Intelligent Temperature Control Bearing Heater Induction Industrial Disassembly Portable
Feature:
Quick heating, high efficient and energy saving
Clean: no oil fume or oil vapor or wastes to be dealt with
Safe, clean and environmentally-friendly
Quick, but no damage for the bearing
Design concept :practicality, reliability, convenience and durability.
Parameter:
| Model | IB-01 | IB-02 | IB-03 |
| Vertical heating inner hole: | 20-140mm | 40-160mm | 80-180mm |
| Horizontal heating inner bore: | 140-300mm | 160-400mm | 180-500mm |
| Maximum outer diameter: | 400mm | 550mm | 750mm |
| Maximum width: | 140mm | 200mm | 280mm |
| Voltage | 220v | 380v | 380V |
| Apparent power | 5KVA | 8KVA | 25KVA |
| Current | 23A | 23A | 66A |
| Load bearing | 50KG | 100KG | 300KG |
| Adjustment method | Time(0-9999s)/Temperature (0-300℃) | ||
| Magnetic probe: | K type ( Accuracy: ±5 ℃) | ||
| Machine weight | 55KG | 85KG | 160KG |
| Mahcine size | 520*380*350mm | 600*380*490mm | 1300*400*825mm |
Working conditions
