Product Details:
Payment & Shipping Terms:
|
| Application: | Melting Furnace | Product Name: | Aluminum Iron Copper Steel Industrial Metal Melting Furnace |
|---|---|---|---|
| Voltage: | 380V | Power: | 160kw |
| Melting Speed: | Less Than 40 Minutes | Rated Frequency: | 1200hz |
| Output Current: | 300A | Weight: | 2 Ton |
| Input Current: | 240A | ||
| Highlight: | IRIS 07 Industrial Metal Melting Furnace,380V Industrial Metal Melting Furnace,160kw Aluminum Iron Melting Furnace |
||

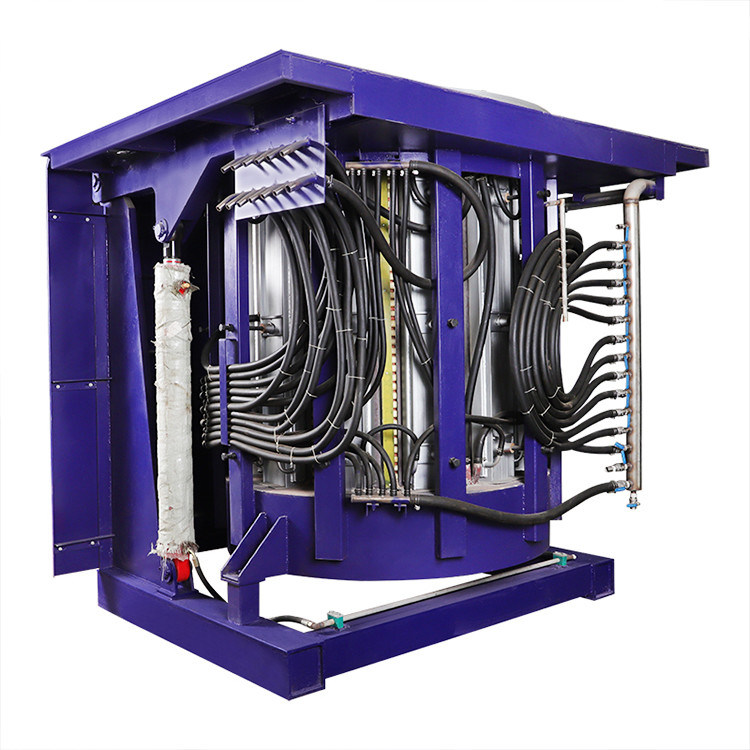

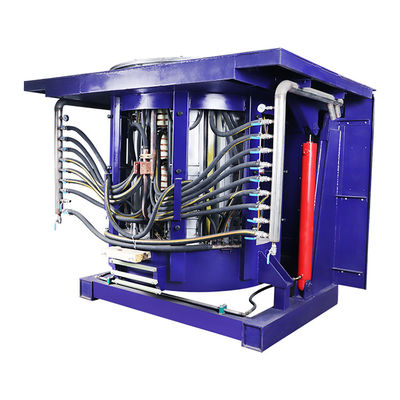

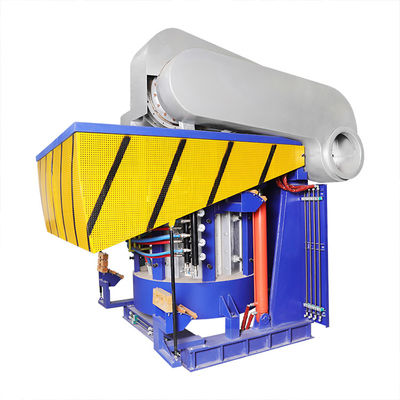

Aluminum Iron Copper Steel Industrial Metal Melting Furnace
1. Intelligent equipment, easy to operate, high stability.
2. High efficiency and energy consumption less than 550KWH/T .
3. Electronic components using well-know brands at home and abroad.
Technical Parameters of 250 kg capacity melting scrap aluminum iron copper metal steel shell induction furnace :
| Capacity (T) | Input voltage (V) | Input current (A) | DC voltage (V) | DC current (A) | MF voltage (V) | MF frequency (Hz) | MF power (Kw) |
| 1-1.5T |
575V 6 phase |
526A | 775V | 1290A | 2800V | 100-400Hz | 1000Kw |
| 1.5-2T | 631A | 1548A | 1200Kw | ||||
| 2-3T | 789A | 1935A | 1500Kw | ||||
| 2-3T | 1052A | 2580A | 2000Kw | ||||
| 3-5T | 1315A | 3225A | 2500Kw | ||||
| 3-5T | 1578A | 3870A | 100-300Hz | 3000Kw | |||
| 4-6T | 1842A | 4516A | 3500Kw | ||||
| 5-7T | 2105A | 5161A | 4000Kw | ||||
| 8T | 2632A | 6451A | 100-250Hz | 5000Kw | |||
| 8-10T | 3158A | 7741A | 6000Kw |
We Guarantee:
Professional introduction and suggestion on raw material, machine selection, workshop condition, feasibility analysis, and etc;
24 hours on-line service;
Engineer available to help with installation and test the machine overseas if needed;
Training support to the operator until they are satisfied;
Recall clients regularly, get feedback in time, keep well communication with each other.
