Product Details:
Payment & Shipping Terms:
|
| Product Name: | 1kg 2kg Palladium Melting Furnace | Voltage: | 3 Phase 380V ± 10%, 50 / 60HZ |
|---|---|---|---|
| Power: | 15 Kw( Adjustable) | Applicable Metal: | Platinum, Palladium, Gold, K Gold, Silver, Copper |
| Melting Time: | 2 Minutes | Maximum Capacity: | 2 Kg (Platinum) |
| Water Pump: | Built-in | Cooling Method: | Water Cooling |
| Highlight: | IRIS B1 Platinum Melting Furnace,IRIS Platinum Melting Furnace,IRIS B1 Palladium Melting Furnace |
||

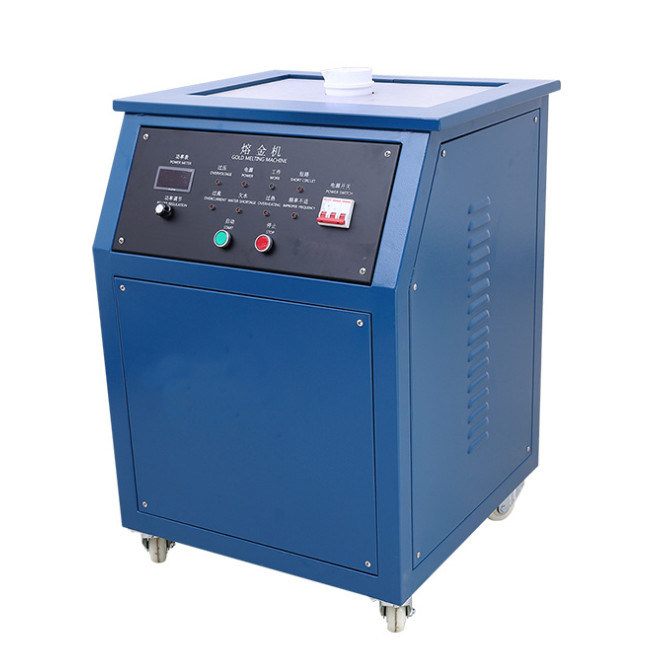

Fast Smelting Platinum Palladium Melting Furnace 1kg 2kg
Feature:
The platinum smelting furnace can be used to quickly melt a variety of metals, the temperature can reach 2600 degrees, and the melting furnace can be melted in the fastest 2 minutes to avoid metal pollution. It can be achieved by switching the crucible, so there is no need to use separate smelting furnaces for different metals . More importantly, there is no need to purchase additional chillers.
The parameter of the Fast Smelting Platinum Palladium Melting Furnace 1kg 2kg:
| Model | IRIS-B1 | IRIS-B2 |
| Power supply | 3 phase 380V ± 10%, 50 / 60HZ | 3 phase 380V ± 10%, 50 / 60HZ |
| Power | 15 kw( adjustable) | 15 kw( adjustable) |
| Applicable metal | Platinum, Palladium, Gold, K Gold, Silver, Copper | Platinum, Palladium, Gold, K Gold, Silver, Copper |
| Melting time | 2 minutes / furnace | 2 minutes / furnace |
| Maximum capacity | 1 kg (Platinum) | 2 kg (Platinum) |
| Temperature | 2800℃ | 2800℃ |
| Machine size | 1180x690x500 mm | 1180 * 680x500 mm |
| Machine weight | 88 kg | 90 kg |
| Heating technology | IGBT induction heating | IGBT induction heating |
| Water pump | Built-in | Built-in |
| Cooling method | Water cooling | Water cooling |
FQA:
1. How long is the delivery time?
The products wil be sent within 7days after the full payment.
2. What is the warranty time?
One year.
3. What are the accessories for the machine?
We will send you two induction coils for free.
4. How to install your machine?
we have installation instruction papers and videos, we will teach till you can do it yourself.
5. I still have the question , and i don't understand ...?
Please send us the inquiry , 24 hours service for you.
Tips:
1. Details of prices,pls on-line or email consulation.
2. Picture for reference only,tiny chromatic,pls take material object as the standard.
3. Welcome to illustrate your workpiece parameters,we will try our best to specifically customized for you.
Thanks for your reading ! Welcome to contact us !
