Product Details:
Payment & Shipping Terms:
|
| Product Name:: | 8 KVA 220 V Induction Bearing Heater | Vertical Heating Inner Hole: | 40-160mm |
|---|---|---|---|
| Horizontal Heating Inner Bore: | 160-400mm | Maximum Outer Diameter: | 550mm |
| Maximum Width: | 200mm | Apparent Power: | KVA |
| Current: | 23A | Load Bearing: | 100KG |
| Magnetic Probe: | K Type ( Accuracy: ±5 ℃) | Warranty: | One Year |
| Highlight: | 8KVA Electromagnetic Induction Heater,220V Electromagnetic Induction Heater,100KG Vertical bearing heating machine |
||

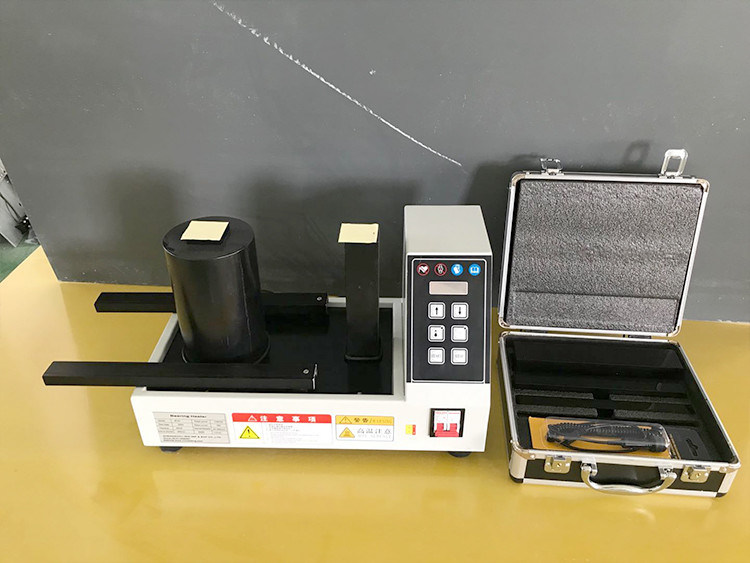

8 KVA 220V Induction Heaters Bearing Vertical Heating Inner Hole 40-160mm
Electromagnetic induction bearing heater-mainly used for maturing various types of metal parts such as bearings,
gears, bushings, shaft palaces, diameter rings, pulleys, shrink rings, connecting rings, etc., to expand them and
achieve interference assembly The required functions include: rapid temperature setting, real-time temperature
display, automatic super-humidity protection, automatic heat preservation, etc.
Feature:
Quick heating, high efficient and energy saving
Clean: no oil fume or oil vapor or wastes to be dealt with
Safe, clean and environmentally-friendly
Quick, but no damage for the bearing
Design concept :practicality, reliability, convenience and durability.
Parameter:
| Model | IB-01 | IB-02 | IB-03 |
| Vertical heating inner hole: | 20-140mm | 40-160mm | 80-180mm |
| Horizontal heating inner bore: | 140-300mm | 160-400mm | 180-500mm |
| Maximum outer diameter: | 400mm | 550mm | 750mm |
| Maximum width: | 140mm | 200mm | 280mm |
| Voltage | 220v | 380v | 380V |
| Apparent power | 5KVA | 8KVA | 25KVA |
| Current | 23A | 23A | 66A |
| Load bearing | 50KG | 100KG | 300KG |
| Adjustment method | Time(0-9999s)/Temperature (0-300℃) | ||
| Magnetic probe: | K type ( Accuracy: ±5 ℃) | ||
| Machine weight | 55KG | 85KG | 160KG |
| Mahcine size | 520*380*350mm | 600*380*490mm | 1300*400*825mm |
Working conditions
