Product Details:
Payment & Shipping Terms:
|
| Weight: | 21-1800kg | Voltage: | 120-500V |
|---|---|---|---|
| Minimum Inner Diameter: | 10-240mm | Maximum Width: | 120-1020mm |
| Outer Diameter: | 240-2500mm | Heating Time: | 30minutes |
| Frequency (HZ): | 50/60HZ | Dimensions (mm): | 540x330x500 |
| High Light: | IRIS Portable Bearing Induction Heater,500V Portable Bearing Induction Heater,European Standard electric bearing heater |
||

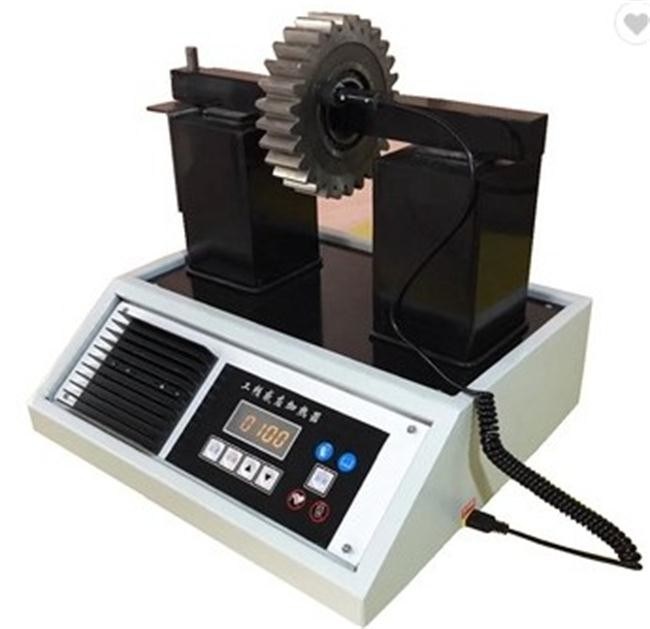

European Standard Portable Bearing Induction Heater
Selling point of European Standard Portable Bearing Induction Heater:
It adopts electromagnetic induction and mode, so that the work-piece is heated directly, heating more evenly.
It has constant temperature and timing two heating methods, with the characteristics of automatic heat preservation, manuallautomatic demagnetization, over-heat protection and so on.
Safe, convenient and quick operation.
Technical Parameters of European Standard Portable Bearing Induction Heater:
| Model | Voltage (V) |
Current (A) |
Frequency (HZ) |
Power (KW) |
Dimensions (mm) |
Weight (kg) |
Working Range | ||||
|
Min. internal Diameter of Work-piece |
Max. of Work-piece |
Max. Work-piece |
Max. of Work-piece |
Max. Temperature (℃) |
|||||||
| 1 | 220 | 10 | 50/60 | 2.2 | 300x210x300 | 16.6 | Hang:15 Level:60 |
220 | Hang:65 Level:95 |
Bearing:15 Others:9 |
240 |
| 2 | 220 | 18 | 50/60 | 4 | 480x270x340 | 27 | Hang:20 Level:120 |
480 | Hang:130 Level:175 |
Bearing:50 Others:35 |
240 |
| 3 |
Two phase 380 |
25 | 50/60 | 10 | 540x330x500 | 85 | Hang:45 Level:140 |
720 | Hang:195 Level:215 |
Bearing:150 Others:100 |
240 |
| 4 |
Two phase 380 |
30 | 50/60 | 12 | 920x450x930 | 180 | Hang:45 Level:100 |
860 | Hang:295 Level:305 |
Bearing:350 Others:240 |
240 |
| 5 |
Two phase 380 |
38 | 50/60 | 15 | 1460x700x1100 | 275 | Hang:60 Level:180 |
1020 | Hang:375 Level:315 |
Bearing:450 Others:600 |
240 |
We Guarantee:
1. One year guarantee for free repair and mainenance
2. OEM service available
3. Wholehearted after-sales service
