| Product Name: | Hardening And Tempering Furnace | Temperature: | 550 Degree |
|---|---|---|---|
| Size: | 1600×1800×2100 Mm | Power: | 36 Kw |
| Furnace Weight: | 2500 Kg | Max Capacity: | 400kg |
| High Light: | 36kw Continuous Hardening And Tempering Furnace,550 degree Tempering Furnace,480V 60Hz automatic Tempering Furnace |
||

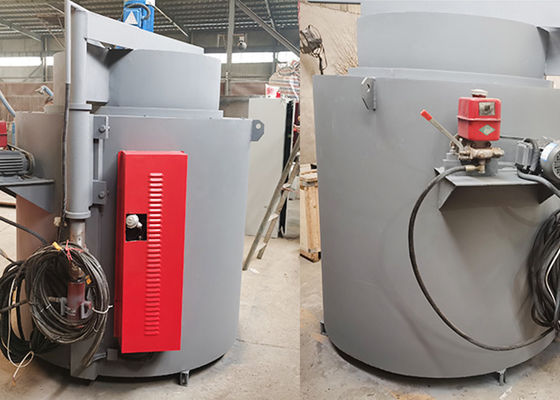

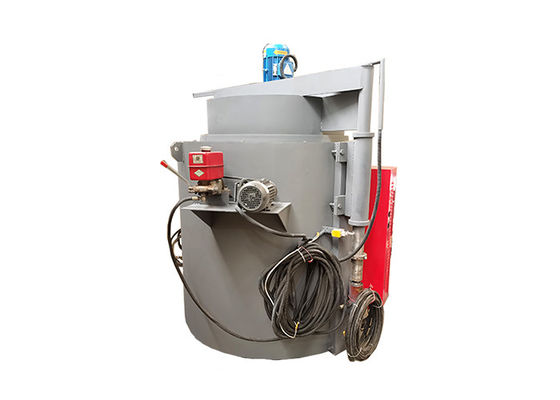

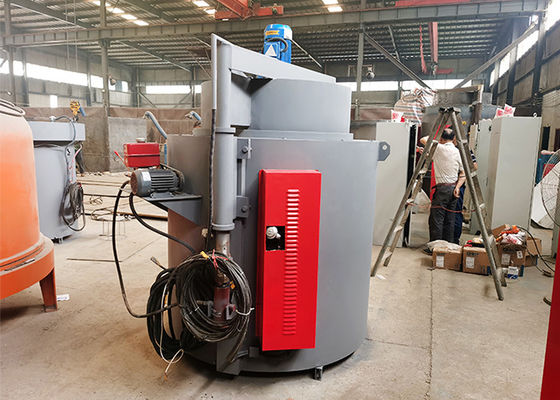

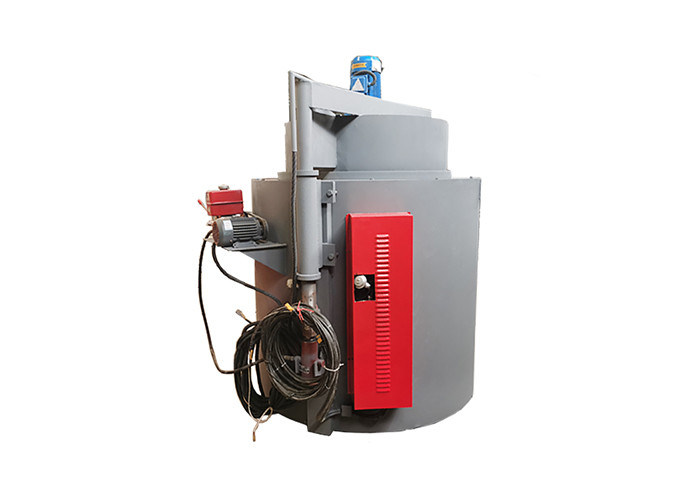

Hardening And Tempering Furnace Tempering Machine Automatic
Continuous Hardening And Tempering Furnace
Electrical control systel
|
Power supply
|
480V 60Hz |
|
Cabinet shell
|
dustproof and waterproof |
| Temperature control power components | West SSR360A/1100V high current high voltage solid state power module |
| Heating element | Beijing Shougang, high temperature 0Cr25AL5 resistance belt |
|
Electrical components
|
Chint Electric |
| Thermocouple | Shanghai No. 2 Automation Instrumentation Factory |
|
Dimensions of the electrical cabinet
|
500×400×1600 mm |
|
Weight
|
120Kg/unit |
Parameter
| Effective size | Ф700mm×1000mm |
| Rated power | 36KW |
| Maximum temperature | 550 ℃ |
| Heating zones | 1 zone |
| Temperature control | intelligent instrument PID |
| Power executive components | SSR360A/1100V solid state power module |
| Temperature control deviation | ±2°C |
| Temperature control accuracy | 0.3 grade |
| Soaking method | forced convection with fan on the furnace top |
| Furnace temperature uniformity | ≤±3℃ |
| Rated furnace capacity | ≤400Kg |
| Heating time of empty furnace | ≤1.2h |
| Empty furnace loss | ≤20KW |
| Furnace wall temperature rise | ≤ ambient +30 ℃ |

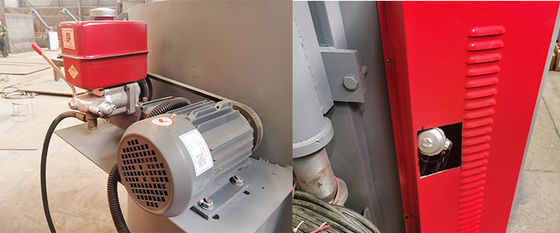

| Furnace cover lifting method | hydraulic |
| Furnace weight | 2800Kg |
| Dimensions | 1600mm×1800mm×2100mm |
