Product Details:
Payment & Shipping Terms:
|
| Product Name: | Tempering Furnace | Power: | 65KW |
|---|---|---|---|
| Capacity: | 400kg | Effective Size: | Ф700mm*1000mm |
| Max Temperature: | 750C | Temperature Deviation: | ±2℃ |
| Customization: | Support | OEM: | Acceptable |
| Warranty: | 1 Year | Temperature Control Method: | Intelligent Instrument PID Control |
| High Light: | Well Type Nitriding Furnace,400kg Nitriding Furnace,Tempering Furnace For Steel Workpieces |
||

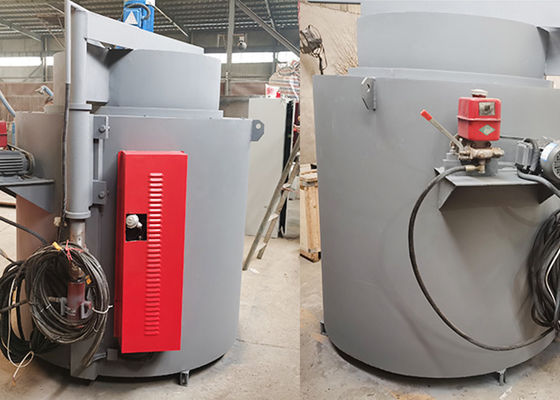

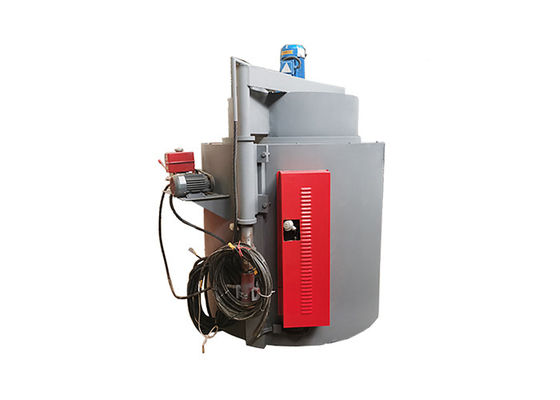

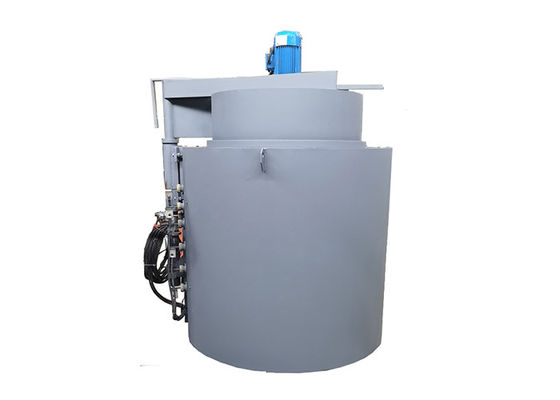

Well-Type Nitriding Furnace For Steel Workpieces Tempering Furnace Description
Well-Type Nitriding Furnace For Steel Workpieces Tempering Furnace is a continuous operation furnace. The workpiece is placed at the entrance of the electric furnace by manual or manipulator. The workpiece passes through the furnace at a constant speed and is heated to the set temperature. At the exit, it falls into the quenching pool to complete the quenching treatment. Work is raised from the pool and into the tempering furnace. In this way, the heat treatment process of quenching and tempering is completed.
1. Well-Type Nitriding Furnace For Steel Workpieces Tempering Furnace Structure
Pit type tempering furnace is energy-saving cycle operation furance, which is used for tempering general metal parts in the air and quenching, annealing, aging heat treatment for aluminum alloy castings ,piston, aluminum and other light alloy parts.
2.Well-Type Nitriding Furnace For Steel Workpieces Tempering Furnace Preparations
Preparations before opening the furnace
a. Remove the carbon black in the furnace tank and check the sealing gasket.
b. Check the circulating fan and motor, add grease to the bearing, and pass water through the cooling water jacket.
c. Check the position of the thermocouple and the hydraulic lifting mechanism.
d. Check the titrator, methanol, and kerosene reservoirs.
3. Well-Type Nitriding Furnace For Steel Workpieces Tempering Furnace Technical Parameter
| Model | IRIS-JQ65 |
| Electric furnace power | 65kw |
| Input voltage | 480v 60 HZ |
| Effective size | Ф700mm*1000mm |
| Maximum temperature | 750℃ |
| Number of temperature control zones | 1 zone |
| Temperature control accuracy | ≤±2℃ |
| Furnace Size | 1600mm×1800mm×2100 mm |
| Furnace Weight | 2800kg |
| Productivity | 100kg/h |
| Heating method | High temperature resistance tape |
| Temperature control method | Intelligent digital display instrument and PID temperature control; with over temperature alarm |
| Heating time | less than 1.2 hours |
