| Product Name: | Big Capacity Hydraulic Tilting Steel Shell Furnace For Cast Iron Barbell And Dumbbell Setl | Capacity: | 2000kg |
|---|---|---|---|
| Power: | 1500kw | Input Voltage: | 575V |
| Input Current: | 790A | DC Voltage: | 775V |
| DC Current: | 1935A | MF Voltage: | 2800V |
| MF Frequency: | 100-400HZ | Type: | Industrial Metal Melting Furnace |
| Highlight: | Hydraulic Tilting Steel Melting Furnace,Cast Iron Barbell Steel Melting Furnace,Dumbbell Setl Steel Melting Furnace |
||

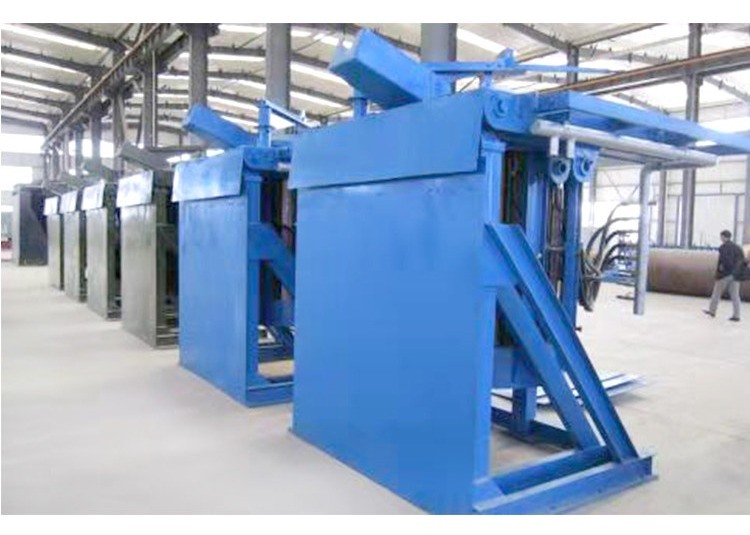

Big Capacity Hydraulic Tilting Steel Shell Furnace For Cast Iron Barbell And Dumbbell Setl
Rotary Zero-gap technology :
The furnace body rotates without gaps during the tilting process, which can effectively prevent molten iron liquid enters the furnace body ,and protect the equipment ruuning safely
Side plate structure of furnace body :
The side plate structureof the furnace body adopts the one-piece forming process of the integral steel plate, which is sturdy and durable.
High quality yoke :
Magnetic yoke is using silicon steel sheet with 0.27 thick and high magnetic perme ability produced by Wuhan Iron and Steel Company Limited,which effectively prevents expansion due to heat of the stainless steel.

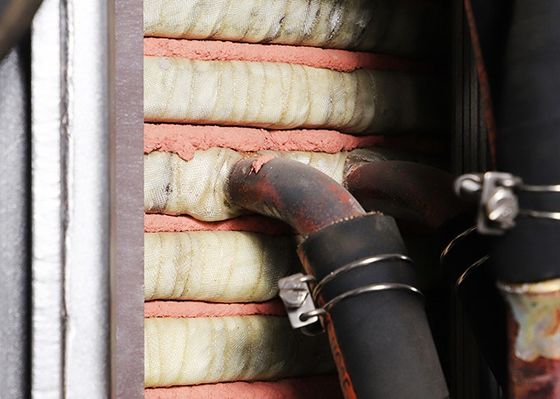

Material of induction coil :
Material of induction coil producted by CHINACO Luoyang Copper Co., Ltd.
Wall thickness of induction coil : 5mm-8mm
3-layer insulation treatment
Stainless steel water separator :
304 stainless steel shunt
Technical parameter of the Big Capacity Hydraulic Tilting Steel Shell Furnace For Cast Iron Barbell And Dumbbell Setl
| Model | KGPS-300 | KGPS-500 | KGPS-1200 | KGPS-1400 | KGPS-2000 | KGPS-4500 |
|
Rated power |
300KW | 500KW | 1200KW | 1400KW | 2000KW | 4500KW |
|
Rated capacity |
350kg | 750kg | 1500kg | 2000kg | 3000kg | 6000kg |
|
Matching transformer’s capacity |
315KVA | 630KVA | 1250KVA | 1800KVA | 2500KVA | 5500KVA |
|
Input voltage |
380V 50-60HZ | 750V 50HZ | 750V 50HZ | 6x750V 50HZ | 6x750V 50HZ | |
|
MF frequency |
1000HZ | 1000HZ | 800HZ | 500HZ | 500HZ | 300HZ |
|
MF voltage |
750V | 750V | 1400V | 1480V | 1460V | 4800V |
|
DC voltage |
500V | 500V | 990V | 990V | 990V | 1350V |
|
DC current |
600A | 1000A | 1000A | 1410A | 1010A | 3300A |
|
Maximum temperature |
1800℃ | |||||
