| Product Name: | 500kg Induction Melting Oven Aluminium Melting Furnace With 400kw Power Supply Cabinet | Application: | Metal Melting |
|---|---|---|---|
| Capacity: | 500KG | Raw Material: | Aluminum |
| Melting Time: | 40-60 Minutes | Power: | 400KW |
| Voltage: | 3*380V | Rated Frequency: | 1000HZ |
| Heating Method: | Induction Method | Cooling Way:: | Water Cooling |
| Highlight: | 500kg Induction Heating Oven,400kw Induction Heating Oven,400kw 500kg Aluminium Melting Furnace |
||

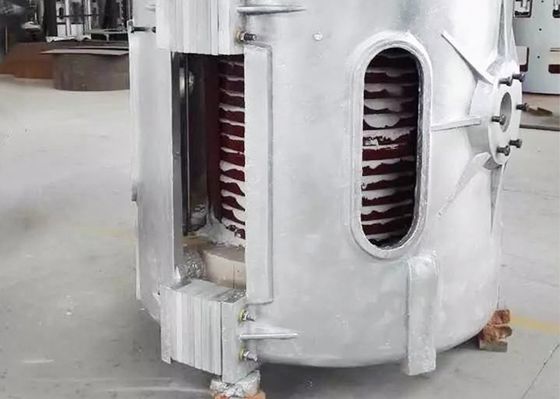

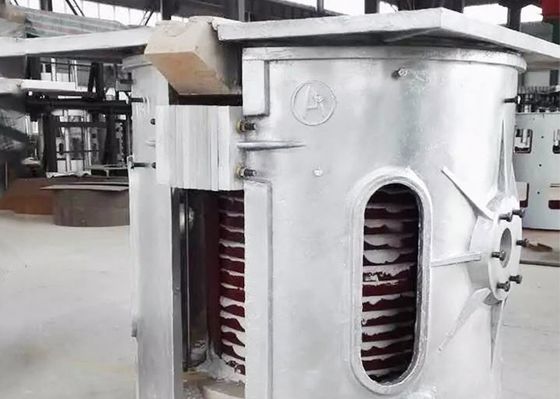

500kg Induction Melting Oven Aluminium Melting Furnace With 400kw Power Supply Cabinet
500kg Induction Melting Oven Aluminium Melting Furnace With 400kw Power Supply Cabinet advantage as follows:
High melting efficiency for the scarp metal.Structure compact,strong over load ability, Furnace easy to operating process and melting safety.The temperature surrounding the furnace is lower, dustless, good working environment.You can choose the environmental protection equipment.
|
Basic Parameters
|
||||||
| Capacity | Power | Voltage | Cabinet size (mm) | Cabinet weight | Furnace Body weight | |
| 100KG | 100KW | 3*380V | 1000*800*1700 | 0.5T | 0.3T | |
| 250KG | 250KW | 3*380V | 1300*850*2000 | 0.8T | 0.7T | |
| 500KG | 400KW | 3*380V | 1300*850*2000 | 1T | 1T | |
| 1T | 800KW | 3*660V | 1300*850*2000 | 1.2T | 1.3T | |
| 1.5T | 1000KW | 3*660V | 1300*850*2000 | 1.2T | 1.8T | |
| 2T | 1500KW | 3*660V | 2400*1000*2000 | 1.6T | 2T | |
| 5T | 3000KW | 6*950V | 2400*1000*2000 | 2.5T | 4.5T | |
| 10T | 6000KW | 6*1250V | 3500*1000*2200 | 3T | 23T | |
| 15T | 10000KW | 6*1250V | 4000*1200*2200 | 3.5T | 32T |
|
The melting furnace mainly composed of power control cabinet and melting furnace body.
The equipment can meet 24 hours of continuous work,
it have self-test function and leaking alarm device,
real-time detection of water temperature, water pressure, over-current, over-voltage, lack phase information
