| Product Name: | Industrial Metal Melting Furnace Iron Melting Furnace 1000kg | Application: | Metal Melting |
|---|---|---|---|
| Capacity: | 1000KG | Raw Material: | Iron |
| Melting Time: | 40-60 Minutes | Power: | 750KW |
| Voltage: | 3*380V | Rated Frequency: | 1000HZ |
| Heating Method: | Induction Method | Cooling Way:: | Water Cooling |
| Highlight: | 1000kg Industrial Metal Melting Furnace,750KW Iron Industrial Metal Melting Furnace,1000kg Iron Melting Furnace |
||
Industrial Metal Melting Furnace Iron Melting Furnace 1000kg
|
Basic Parameters
|
||||||
| Capacity | Power | Voltage | Cabinet size (mm) | Cabinet weight | Furnace Body weight | |
| 100KG | 100KW | 3*380V | 1000*800*1700 | 0.5T | 0.3T | |
| 250KG | 250KW | 3*380V | 1300*850*2000 | 0.8T | 0.7T | |
| 500KG | 400KW | 3*380V | 1300*850*2000 | 1T | 1T | |
| 1T | 800KW | 3*660V | 1300*850*2000 | 1.2T | 1.3T | |
| 1.5T | 1000KW | 3*660V | 1300*850*2000 | 1.2T | 1.8T | |
| 2T | 1500KW | 3*660V | 2400*1000*2000 | 1.6T | 2T | |
| 5T | 3000KW | 6*950V | 2400*1000*2000 | 2.5T | 4.5T | |
| 10T | 6000KW | 6*1250V | 3500*1000*2200 | 3T | 23T | |
| 15T | 10000KW | 6*1250V | 4000*1200*2200 | 3.5T | 32T | |
0.5 Ton Metal Electric Induction Melting Furnace Smelting Industrial Oven Steel Copper Aluminium Melting Pot Stove include:
The PLC technology is China's leading control technology. It is developed internally by our factory and has independent intellectual property rights.

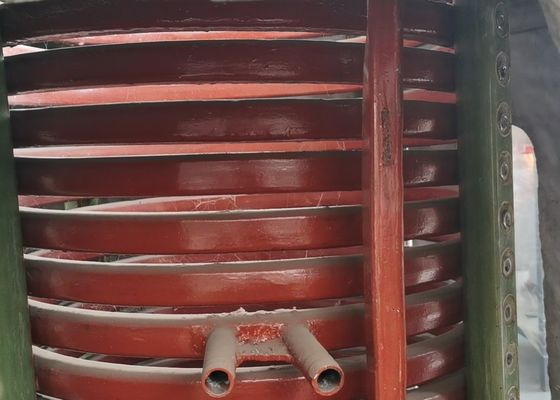

Material of induction coil :
Material of induction coil producted by CHINACO Luoyang Copper Co., Ltd.
Wall thickness of induction coil : 5mm-8mm
3-layer insulation treatment
Components of induction melting furnace :
All components of induction melting furnace are from famous brand and of high qualilty.

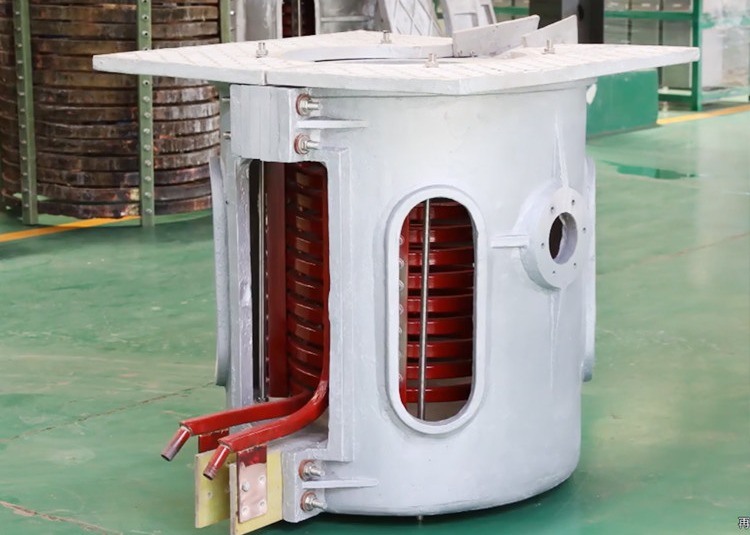

The melting furnace mainly composed of power control cabinet and melting furnace body.
The equipment can meet 24 hours of continuous work,
it have self-test function and leaking alarm device,
real-time detection of water temperature, water pressure, over-current, over-voltage, lack phase information
