| Product Name: | Induction Pipe Heater For Heating Treatment Device In Pipeline Construction Equipment | Model: | 80kw |
|---|---|---|---|
| Input Voltage: | 3x380V±15% 50-60Hz | Input Voltage Range: | 320-420V |
| Input Oscillation Frequency: | 5-20KHz | Impedance Matching Level: | 3-5 Level |
| Heating Oscillating Current: | 45-175A | Structure: | All In One |
| Machine Size: | 700*1000*600 | Duty Rate: | 100%(40℃ Room) |
| High Light: | 80kw Induction Heat Treatment Device,IRIS Induction Heat Treatment Device,Pre And Post Heat Treatment Of Welded Joints |
||

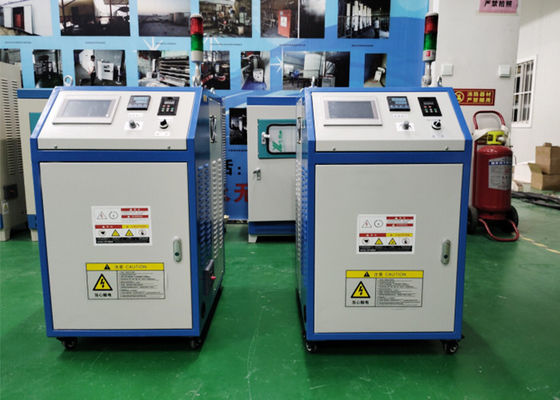

Induction Pipe Heater For Heating Treatment Device In Pipeline Construction Equipment
Induction Pipe Heater For Heating Treatment Device In Pipeline Construction Equipment main applications are pipeline heating, pre-welding heating, post-welding heat treatment, stress relief, injection mold heating, annealing, etc.Pre-heating:for coating, bending, fitting&unfitting, welding.Post-welding heat treatment: tank, boiler or other metal jobs.Heating: mold heating, shipboard, zinc bath, large& irregular metal part.Pipeline heating: pipeline oil, pipeline gas, pipeline water, pipeline petrochemical and other pipeline material
The using fields involved are petrochemical, oil and gas pipelines, aerospace, shipbuilding, steel, tanks, boilers, vessels, pressure vessels, cylinders, metal structure, spatial structure, railway bridges, electricity water, mine construction, vehicle manufacturing, nuclear power, mining, plastics processing, energy saving process, mold, screw barrel industries,etc.
Technical Parameters of Pipeline Heating Equipment Electromagnetic Induction Heating PWHT Machine
| Model | IRIS-C40 | IRIS-C50 |
| Input voltage | 3x380V±15% 50-60Hz | 3x380V±15% 50-60Hz |
| Input voltage range | 320-420V | 320-420V |
| Input oscillation frequency | 5-20KHz | 5-20KHz |
| Impedance matching level | 3-5 Level | 3-5 Level |
| Machine weight | 65kg | 65kg |
| Heating oscillating current | 20-80A | 75A |
| Heating oscillating current | 65A | 75A |
| Maximum input power | 40KW | 50KW |
| Continuous operating power | 30-40KW | 30-50KW |
| Duty rate | 100%(40℃ Room) | 100%(40℃ Room) |
| structure | All in one | All in one |
| Machine size(mm) | 700*480*700 | 700*480*700 |
FAQ
1.Why choose our factory?
Our company has advanced production equipment and strong technology. The producing process is under strict management in quality. Our products are sold around the world and highly thought of since excellent quality and perfect service at home and abroad.
2.The advantage for our product?
High efficiency , energy saving,delivery fast and good quality
3.The advantage for us ?
Reasonable price and best services , advanced equipment and strong technology.
4.How to order?
Do not hesitate to contact by online or Email as soon as possible once you are interested in our products. The specific quotation will be offered basing the request dimension and quantity.
5. What about the quality?
All products according to ISO and National highest standard, also we can offer CE, certificate if necessary.
6. What payment is available?
T/T or the credit Card
7. The delivery time and valid warranty time.
Usually 7-15 working days and the machine have one year warranty.
