Product Details:
Payment & Shipping Terms:
|
| Product Name: | Pipeline Heating Equipment Electromagnetic Induction Heating PWHT Machine | Model: | 50kw |
|---|---|---|---|
| Input Voltage: | 3x380V±15% 50-60Hz | Input Voltage Range: | 320-420V |
| Input Oscillation Frequency: | 5-20KHz | Impedance Matching Level: | 3-5 Level |
| Heating Oscillating Current: | 75A | Structure: | All In One |
| Machine Size: | 700*480*700mm | Duty Rate: | 100%(40℃ Room) |
| Highlight: | 50kw Post Weld Heat Treatment Equipment,Post Weld Heat Treatment Equipment 5KHz,20KHz Induction Heating PWHT Machine |
||

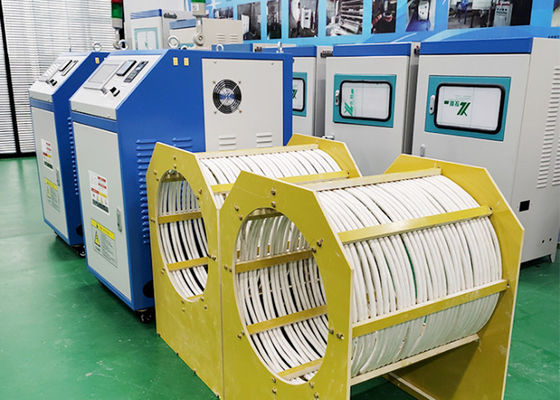

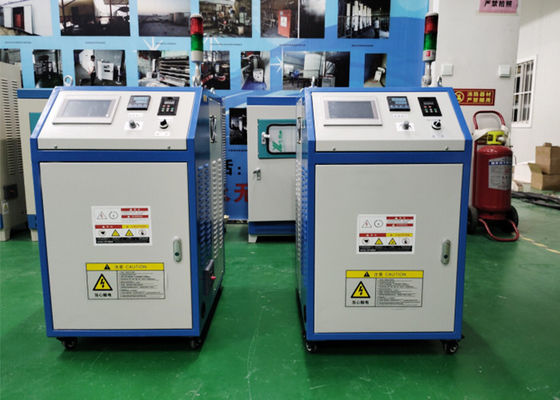

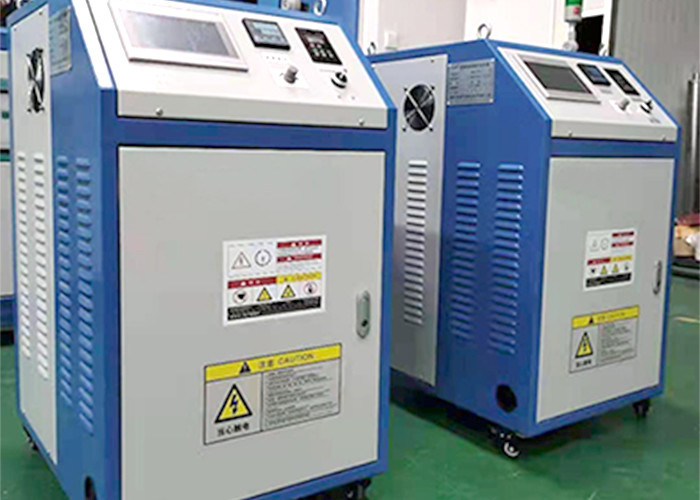

Pipeline Heating Equipment Electromagnetic Induction Heating PWHT Machine
Feature
Technical Parameters of Pipeline Heating Equipment Electromagnetic Induction Heating PWHT Machine
| Model | IRIS-C40 | IRIS-C50 |
| Input voltage | 3x380V±15% 50-60Hz | 3x380V±15% 50-60Hz |
| Input voltage range | 320-420V | 320-420V |
| Input oscillation frequency | 5-20KHz | 5-20KHz |
| Impedance matching level | 3-5 Level | 3-5 Level |
| Machine weight | 65kg | 65kg |
| Heating oscillating current | 20-80A | 75A |
| Heating oscillating current | 65A | 75A |
| Maximum input power | 40KW | 50KW |
| Continuous operating power | 30-40KW | 30-50KW |
| Duty rate | 100%(40℃ Room) | 100%(40℃ Room) |
| structure | All in one | All in one |
| Machine size(mm) | 700*480*700 | 700*480*700 |
Component of the Pipeline Heating Equipment Electromagnetic Induction Heating PWHT Machine
FAQ
1.Why choose our factory?
Our company has advanced production equipment and strong technology. The producing process is under strict management in quality. Our products are sold around the world and highly thought of since excellent quality and perfect service at home and abroad.
2.The advantage for our product?
High efficiency , energy saving,delivery fast and good quality
3.The advantage for us ?
Reasonable price and best services , advanced equipment and strong technology.
4.How to order?
Do not hesitate to contact by online or Email as soon as possible once you are interested in our products. The specific quotation will be offered basing the request dimension and quantity.
5. What about the quality?
All products according to ISO and National highest standard, also we can offer CE, certificate if necessary.
6. What payment is available?
T/T or the credit Card
7. The delivery time and valid warranty time.
Usually 7-15 working days and the machine have one year warranty.
After-sale service:
1. 12 months warranty period
2. Within one year free warranty, any fault caused by non-artificial reason, any quality problems such as design, manufacture, or procedure occurs, we provide replacement parts after detecting the faults.
3. We will provide a lifetime favorable price to the buyer with the materials and spare parts used in system operation, equipment maintenance.
Please note:The above mentioned are only basic after-sale service requirements, we will make more promises related to quality assurance and operation guarantee mechanism.
