Portable 30KW 380V 2kg Platinum small gold melting furnace palladium gold melting

High Temperature Portable 30KW 220V 2kg Platinum Palladium Melting Induction Furnace

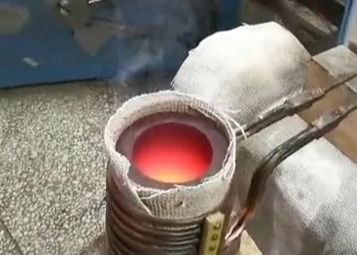

High Temperature Portable 30KW 220V 2kg Platinum Palladium Melting Induction Furnace specially designed for melting small volumes of 1kg-2kg Platinum or Palladium . Small gold melting furnace using induction heating technology, melting temperature up to 2000 Degrees Celsius, melting time only 5 minutes to 8 minutes.

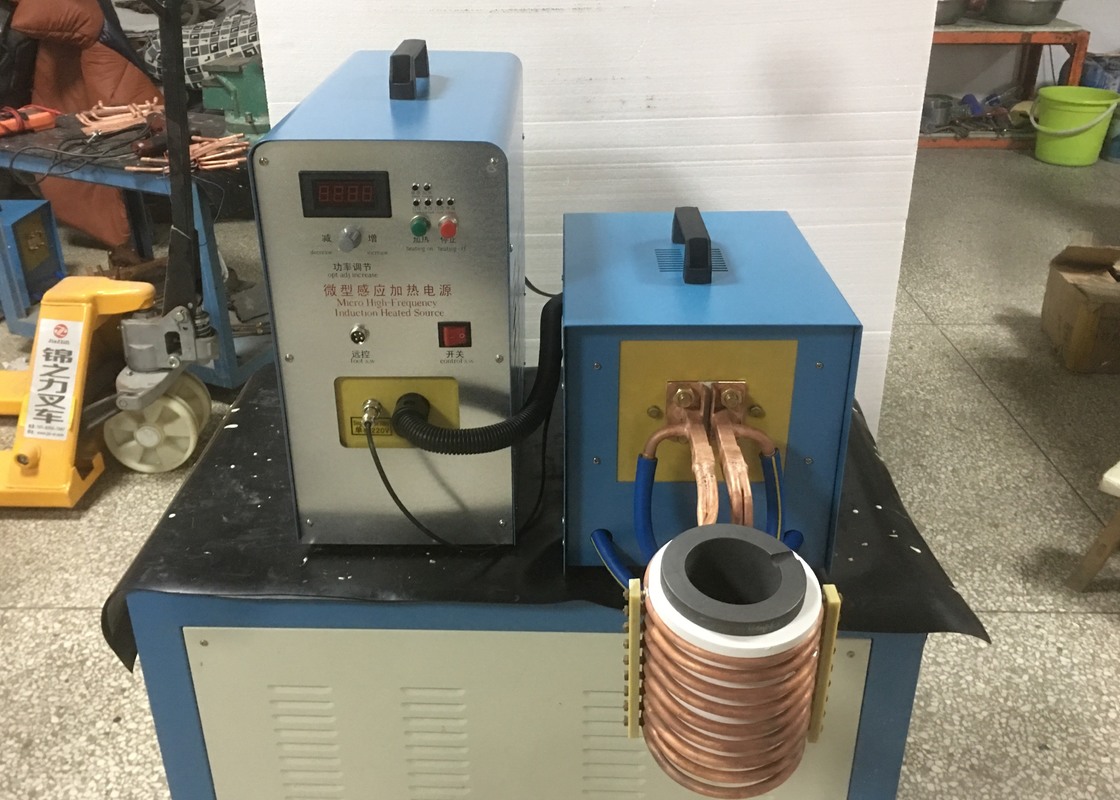

The mini gold melting furnace is equipped with a graphite crucible, protected by a quartz sheath, and can be used not only to melt Platinum Palladium gold but also small amounts of silver, copper, aluminum, and other metals.

Scope of application

(1) Heat treatment: local or overall quenching, annealing, tempering and diathermy of various metals;
(2) Hot forming: whole piece forging, partial forging, hot upsetting, hot rolling;
(3) Welding: brazing of various metal products, welding of various tool blades, saw blades, welding of steel pipes, copper pipes, welding of the same and dissimilar metals;
(4) Metal smelting: (vacuum) smelting, casting and evaporative coating of gold, silver, copper, iron, aluminum and other metals;
(5) Other applications of high frequency heating machine: semiconductor single crystal growth, heat fitting, bottle mouth heat sealing, toothpaste skin heat sealing, powder coating, metal implantation in plastic
Wait.

Equipment advantages

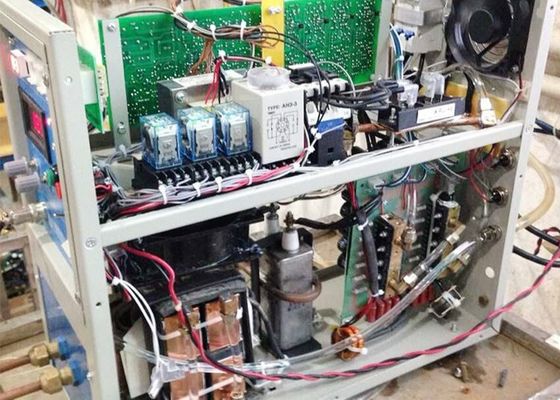

(1) Using IGBT as the main device and full-bridge inverter, the protection function is perfect and the reliability is high.
(2) It can be remotely controlled and connected with infrared temperature measurement to realize automatic temperature control, improve heating quality and simplify worker operations.
(3) Replace oxyacetylene flame, coke furnace, salt bath furnace, gas furnace, oil furnace and other heating methods.
(4) Adopt frequency automatic tracking and multi-channel closed-loop control, simple installation and convenient operation

High Temperature Portable 30KW 220V 2kg Platinum Palladium Melting Induction Furnace:

High Temperature Portable 30KW 220V 2kg Platinum Palladium Melting Induction Furnace

Mainly used in

Mainly for melting range of high quality alloy steel, carbon steel, alloy cast iron ,gold,copper and a variety of non-ferrous metals

1--Furnace structure

Furnace using a non-magnetic metal asbestos board, induction coils, refractories and high-strength insulation materials and other components; non-magnetic metal aluminum material for the furnace. Copper rod connected to the furnace and sensors to asbestos and refractory bricks lining material.

2--Induction coil

Induction coil shaped brass around the system.Induction coils outside of the welded M8 bolts and insulation column connected, the user can easily disassembled when replacing consumable parts. Cooling water should be top intake and below out of.

3--Transmission structure

Furnace drive adopt mechanical transmission. Reducer output shaft driven by the motor, and then realized through furnace shaft rotation. Hand wheel of gear reducer can be used manually during a power outage . Reducer should be regularly add oil into the oiling hole

4--Installation

Mounting arrangement of the equipment should be determined according to the actual needs proper position, should reference floorplan and base on map provided by us,the furnace and converter should not be too far away, so as to avoid the loss of power.

After you determine the model, you need to determine your crucible:

1. Use graphite crucible to melt gold
2. Use silicon carbide crucible to melt copper
3. Use magnesium oxide crucible to melt steel

If you are interested in small high frequency melting furnace, please contact me to get the more details.
