| Product Name: | Small Foundry Production Billet Cast Iron Copper Wire Aluminum Ingots Aluminum Foil Induction Melting Furnace | Application: | Metal Melting |
|---|---|---|---|
| Capacity: | 1000KG | Raw Material: | Aluminum,copper Steel |
| Melting Time: | 40-60 Minutes | Power: | 1000KW |
| Voltage: | 3*380V | Rated Frequency: | 700HZ |
| Heating Method: | Induction Method | Cooling Way:: | Water Cooling |
| High Light: | 1T Industrial Metal Melting Furnace,Ingots Industrial Metal Melting Furnace,1T aluminum smelting furnace |
||
Small Foundry Production Billet Cast Iron Copper Wire Aluminum Ingots Aluminum Foil Induction Melting Furnace
Small foundry production billet cast iron copper wire aluminum ingots aluminum foil induction melting furnace feature as follows:
1.High melting efficiency for the scrap metal such as the aluminum, copper,iron and steel.
2. Metal composition is uniform.
3.Structure compact,strong over load ability, The smelt furnace easy to operating process and melting safety.

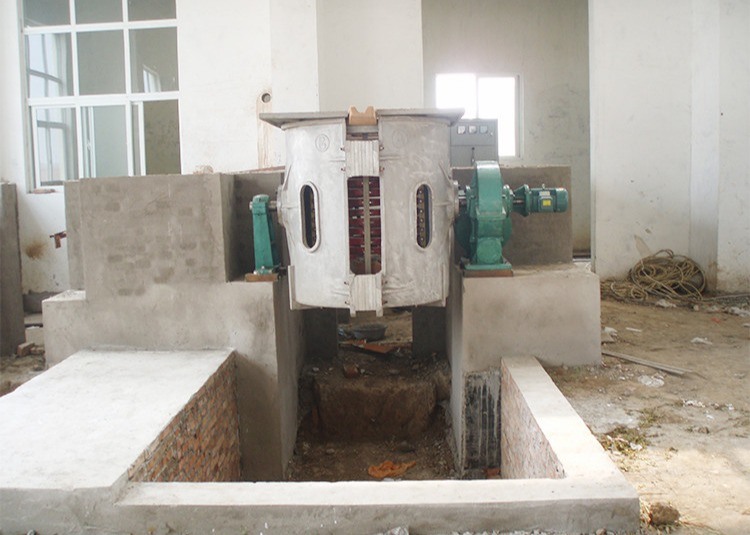

The melting furnace mainly composed of power control cabinet and melting furnace body.
The equipment can meet 24 hours of continuous work,
it have self-test function and leaking alarm device,
real-time detection of water temperature, water pressure, over-current, over-voltage, lack phase information
|
Basic Parameters
|
||||||
|
Capacity
|
Power
|
Voltage
|
Cabinet size (mm)
|
Cabinet weight
|
Furnace Body weight
|
|
|
100KG
|
100KW
|
3*380V
|
1000*800*1700
|
0.5T
|
0.3T
|
|
|
250KG
|
250KW
|
3*380V
|
1300*850*2000
|
0.8T
|
0.7T
|
|
|
500KG
|
400KW
|
3*380V
|
1300*850*2000
|
1T
|
1T
|
|
|
1T
|
800KW
|
3*660V
|
1300*850*2000
|
1.2T
|
1.3T
|
|
|
1.5T
|
1000KW
|
3*660V
|
1300*850*2000
|
1.2T
|
1.8T
|
|
|
2T
|
1500KW
|
3*660V
|
2400*1000*2000
|
1.6T
|
2T
|
|
|
5T
|
3000KW
|
6*950V
|
2400*1000*2000
|
2.5T
|
4.5T
|
|
|
10T
|
6000KW
|
6*1250V
|
3500*1000*2200
|
3T
|
23T
|
|
|
15T
|
10000KW
|
6*1250V
|
4000*1200*2200
|
3.5T
|
32T
|
|
