Product Details:
Payment & Shipping Terms:
|
| Product Name: | 500kg Medium Frequency Scrap Metal Steel Induction Smelting Furnace Price Industrial Metal Melting Furnace | Application: | Metal Melting |
|---|---|---|---|
| Capacity: | 500KG | Raw Material: | Aluminum,copper Steel |
| Melting Time: | 40-60 Minutes | Power: | 500KW |
| Voltage: | 3*380V | Rated Frequency: | 1000HZ |
| Heating Method: | Induction Method | Cooling Way:: | Water Cooling |
| High Light: | 0.5 Ton Industrial Melting Furnace,500kg Industrial Melting Furnace,0.5T electric furnace for aluminium melting |
||
0.5 Ton Metal Electric Induction Melting Furnace Smelting Industrial Oven Steel Copper Aluminium Melting Pot Stove
0.5 Ton Metal Electric Induction Melting Furnace Smelting Industrial Oven Steel Copper Aluminium Melting Pot Stove include:
|
Basic Parameters
|
||||||
| Capacity | Power | Voltage | Cabinet size (mm) | Cabinet weight | Furnace Body weight | |
| 100KG | 100KW | 3*380V | 1000*800*1700 | 0.5T | 0.3T | |
| 250KG | 250KW | 3*380V | 1300*850*2000 | 0.8T | 0.7T | |
| 500KG | 400KW | 3*380V | 1300*850*2000 | 1T | 1T | |
| 1T | 800KW | 3*660V | 1300*850*2000 | 1.2T | 1.3T | |
| 1.5T | 1000KW | 3*660V | 1300*850*2000 | 1.2T | 1.8T | |
| 2T | 1500KW | 3*660V | 2400*1000*2000 | 1.6T | 2T | |
| 5T | 3000KW | 6*950V | 2400*1000*2000 | 2.5T | 4.5T | |
| 10T | 6000KW | 6*1250V | 3500*1000*2200 | 3T | 23T | |
| 15T | 10000KW | 6*1250V | 4000*1200*2200 | 3.5T | 32T | |
The PLC technology is China's leading control technology. It is developed internally by our factory and has independent intellectual property rights.

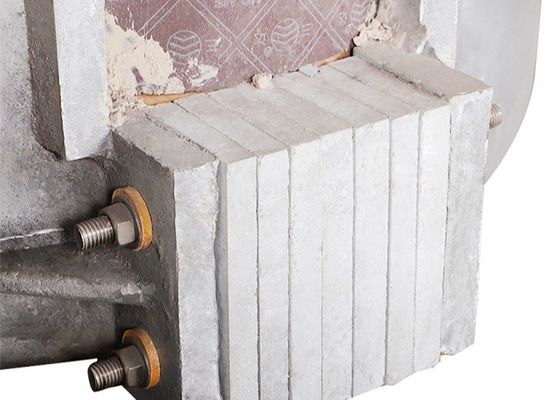

Material of induction coil :
Material of induction coil producted by CHINACO Luoyang Copper Co., Ltd.
Wall thickness of induction coil : 5mm-8mm
3-layer insulation treatment

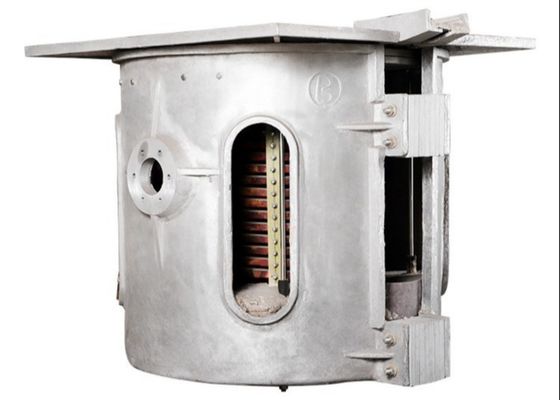

The melting furnace mainly composed of power control cabinet and melting furnace body.
The equipment can meet 24 hours of continuous work,
it have self-test function and leaking alarm device,
real-time detection of water temperature, water pressure, over-current, over-voltage, lack phase information
