| Product Name: | Tilting Induction Recycled Aluminum Can Copper Ingot Melting Furnace Electric Induction Scrap Aluminum Smelting Furnac | Capacity: | 2500kg |
|---|---|---|---|
| Power: | 1500kw | Input Voltage: | 575V |
| Input Current: | 790A | DC Voltage: | 775V |
| DC Current: | 1935A | MF Voltage: | 2800V |
| MF Frequency: | 100-400HZ | Type: | Industrial Metal Melting Furnace |
| High Light: | Tilting Industrial Melting Furnace,400HZ Industrial Melting Furnace,100HZ induction furnace for copper melting |
||

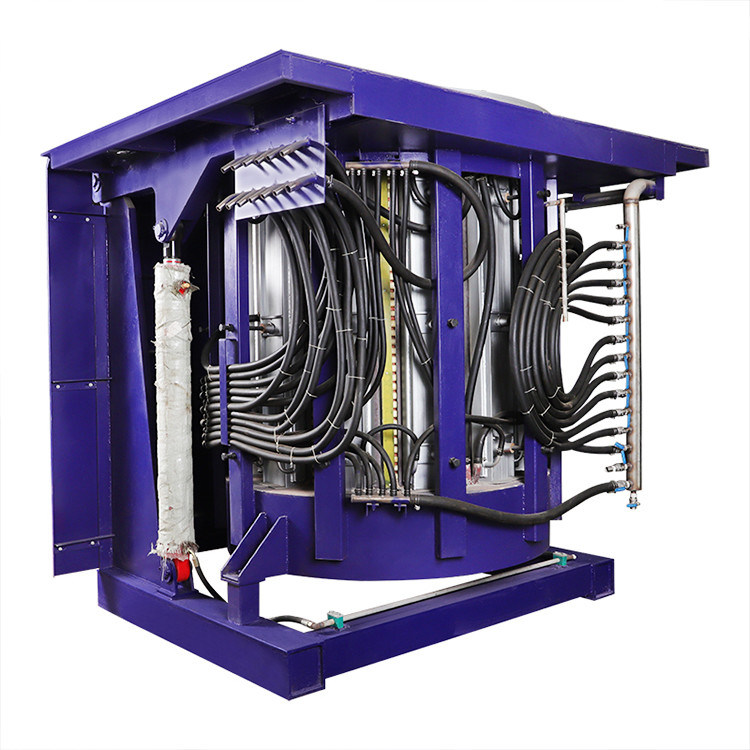

Tilting Induction Recycled Aluminum Can Copper Ingot Melting Furnace Electric Induction Scrap Aluminum Smelting Furnace

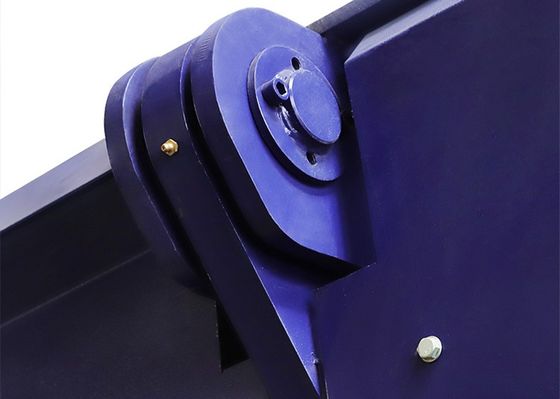

Rotary Zero-gap technology :
The furnace body rotates without gaps during the tilting process, which can effectively prevent molten iron liquid enters the furnace body ,and protect the equipment ruuning safely

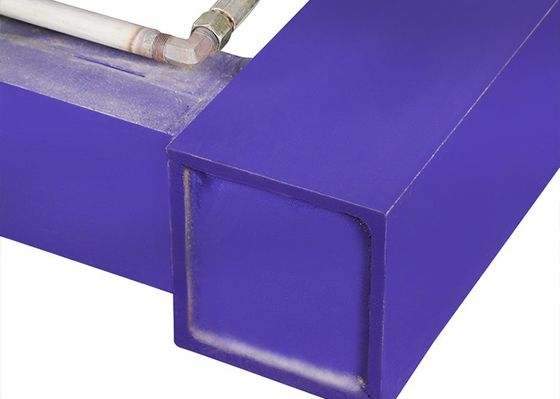

Side plate structure of furnace body :
The side plate structureof the furnace body adopts the one-piece forming process of the integral steel plate, which is sturdy and durable.

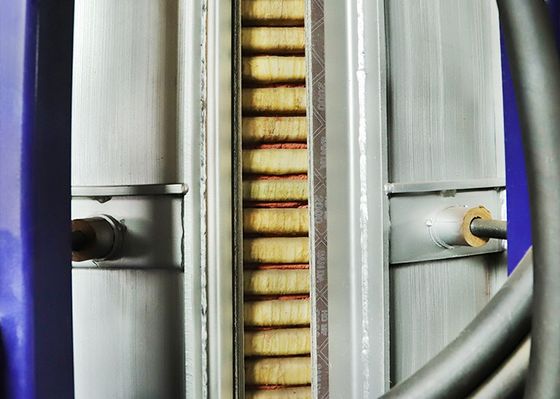

High quality yoke :
Magnetic yoke is using silicon steel sheet with 0.27 thick and high magnetic perme ability produced by Wuhan Iron and Steel Company Limited,which effectively prevents expansion due to heat of the stainless steel.
Material of induction coil :
Material of induction coil producted by CHINACO Luoyang Copper Co., Ltd.
Wall thickness of induction coil : 5mm-8mm
3-layer insulation treatment

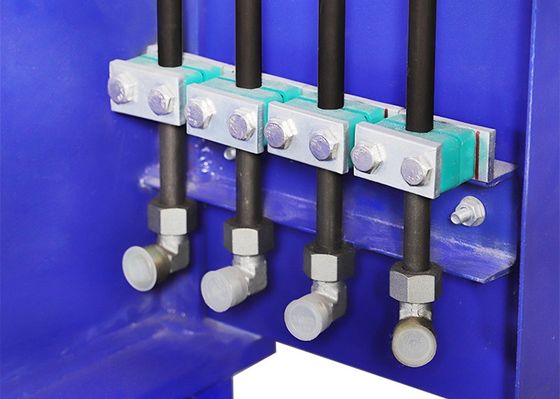

Stainless steel water separator :
304 stainless steel shunt
Technical parameter of the Induction Steel Shell Melting Furnace Aluminum Casting Furnace
| Model | KGPS-300 | KGPS-500 | KGPS-1200 | KGPS-1400 | KGPS-2000 | KGPS-4500 |
|
Rated power |
300KW | 500KW | 1200KW | 1400KW | 2000KW | 4500KW |
|
Rated capacity |
350kg | 750kg | 1500kg | 2000kg | 3000kg | 6000kg |
|
Matching transformer’s capacity |
315KVA | 630KVA | 1250KVA | 1800KVA | 2500KVA | 5500KVA |
|
Input voltage |
380V 50-60HZ | 750V 50HZ | 750V 50HZ | 6x750V 50HZ | 6x750V 50HZ | |
|
MF frequency |
1000HZ | 1000HZ | 800HZ | 500HZ | 500HZ | 300HZ |
|
MF voltage |
750V | 750V | 1400V | 1480V | 1460V | 4800V |
|
DC voltage |
500V | 500V | 990V | 990V | 990V | 1350V |
|
DC current |
600A | 1000A | 1000A | 1410A | 1010A | 3300A |
|
Maximum temperature |
1800℃ | |||||
