Product Details:
Payment & Shipping Terms:
|
| Product Name: | Copper Coils Steel Iron China Melting Oven Customized Smelting Furnace | Application: | Metal Melting |
|---|---|---|---|
| Capacity: | 250KG | Power: | 250KW |
| Voltage: | 3*380V | Cabinet Size (mm): | 1300*850*2000 |
| Cabinet Weight: | 0.8T | Furnace Body Weight: | 0.7T |
| Heating Method: | Induction Method | Melting Time: | 40-60 Minutes |
| High Light: | Copper Coils Induction Melting Furnace,250KG Induction Melting Furnace,250KW Induction Melting Furnace |
||

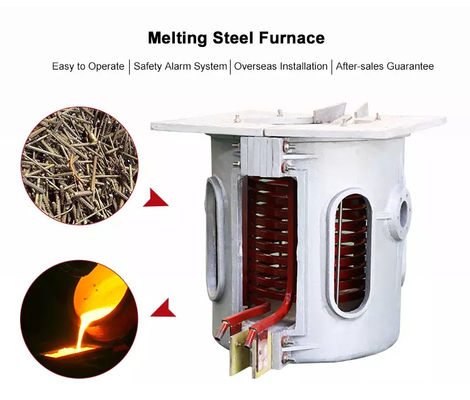

Copper coils Steel Iron China melting oven Customized smelting furnace
The medium frequency smelting furnace mainly used for melting and refining all kinds of scrap metal, iron, stainless steel, copper, aluminum. This furnace can smelting the scrap iron, like scrap auto parts, scrap steel bars, scrap screws, iron leftover materials etc.
|
Basic Parameters
|
||||||
| Capacity | Power | Voltage | Cabinet size (mm) | Cabinet weight | Furnace Body weight | |
| 100KG | 100KW | 3*380V | 1000*800*1700 | 0.5T | 0.3T | |
| 250KG | 250KW | 3*380V | 1300*850*2000 | 0.8T | 0.7T | |
| 500KG | 400KW | 3*380V | 1300*850*2000 | 1T | 1T | |
| 1T | 800KW | 3*660V | 1300*850*2000 | 1.2T | 1.3T | |
| 1.5T | 1000KW | 3*660V | 1300*850*2000 | 1.2T | 1.8T | |
| 2T | 1500KW | 3*660V | 2400*1000*2000 | 1.6T | 2T | |
| 5T | 3000KW | 6*950V | 2400*1000*2000 | 2.5T | 4.5T | |
| 10T | 6000KW | 6*1250V | 3500*1000*2200 | 3T | 23T | |
| 15T | 10000KW | 6*1250V | 4000*1200*2200 | 3.5T | 32T |
|

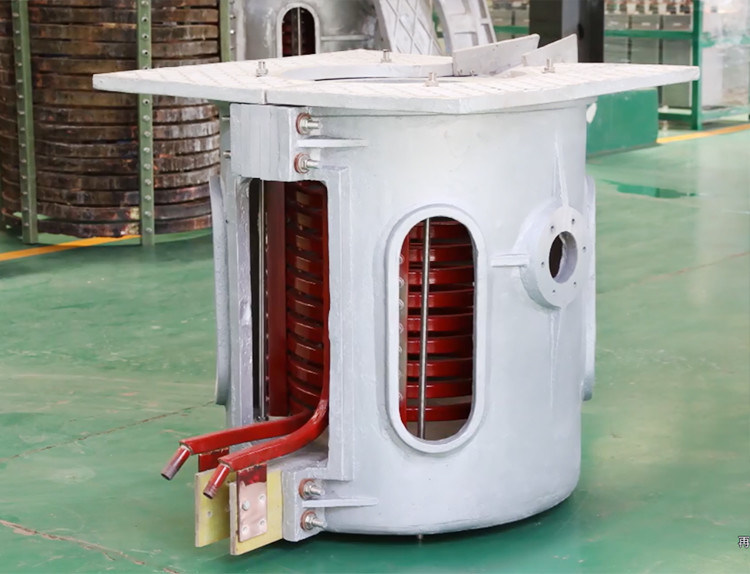

The melting furnace mainly composed of power control cabinet and melting furnace body.
The equipment can meet 24 hours of continuous work,
it have self-test function and leaking alarm device,
real-time detection of water temperature, water pressure, over-current, over-voltage, lack phase information
