Product Details:
Payment & Shipping Terms:
|
| Name: | High Frequency Induction Industrial Melting Furnace | Power: | 26kw |
|---|---|---|---|
| Melting Speed: | 3-5minutes | Cooling: | Water |
| Max Temperature: | 2500 Degree | Melting Metal: | Gold,silver,copper |
| Material: | Steel | Stock: | Yes |
| Voltage: | 220/380V | ||
| High Light: | 2500C Industrial Melting Furnace,26kw High Frequency Induction Furnace,2500C Induction Furnace For Aluminium Melting |
||

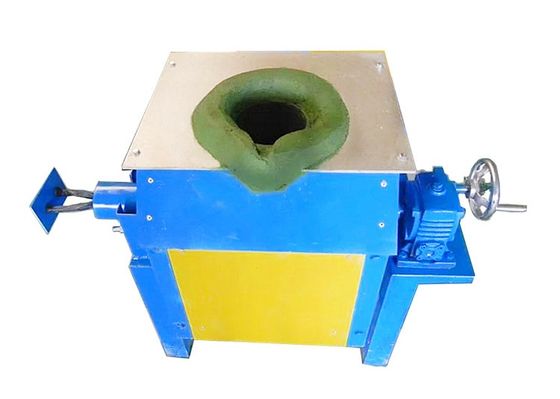

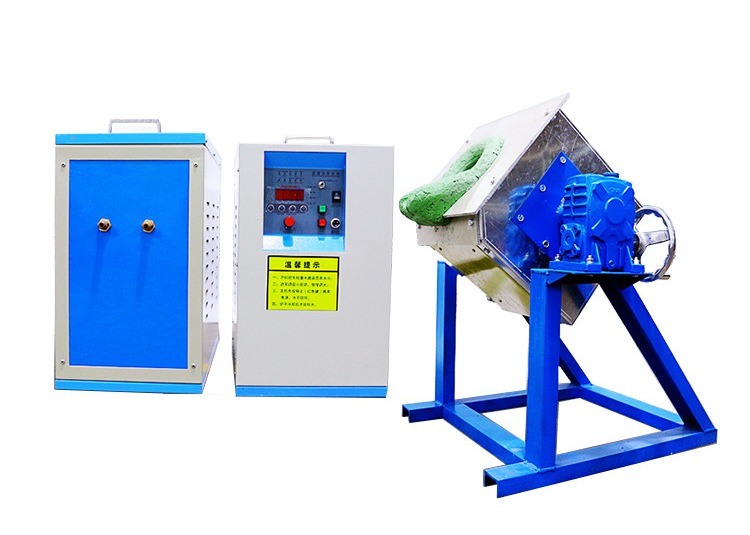

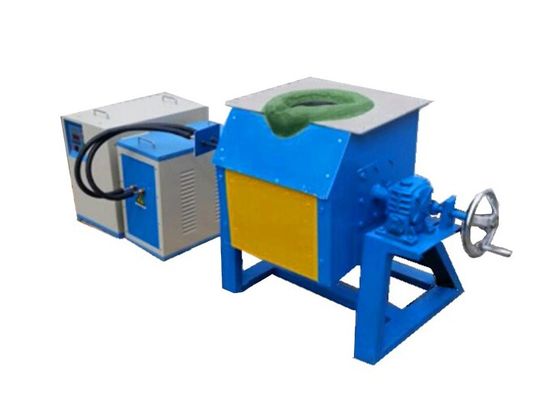

High Frequency Induction Industrial Melting Furnace
1 Application of High Frequency Induction Industrial Melting Furnace
• Heat treatment for various hardware and tools, such as plier, wrench, hammer, ax,screwing tools and shear
• Heat treatment for various automobile and motorcycle fittings, such as crankshaft,connecting rod, piston pin, chain wheel, aluminum wheel, valve, rock arm shaft,semi drive shaft, small shaft and fork.
• Heat treatment for various electric tools, such as gear and axes.
• Heat treatment for machine tools,such as lathe deck and guide rail.
2.Technical Parameters of High Frequency Induction Industrial Melting Furnace
| Model | IR-26 |
| Input power desire | Single phase 220V 50HZ |
| Oscillate power max | 26KW |
| Max input current | 37A |
| Oscillate frequency | 30-100KHZ |
| Cooling water desire | >0.2MPa 2-6L/Min ≤40°C |
| Duty cycle | 80% |
| Dimensions(L*W*H) | 500*380*520mm |
| Net weight | 30kg |
| Cable length | 2-6(Meters) |
3. High Frequency Induction Industrial Melting Furnace detail:
