Product Details:
Payment & Shipping Terms:
|
| Product Name: | 500kg Industrial Metal Melting Furnace | Capacity: | 500kg |
|---|---|---|---|
| Power: | 400kw | Input Voltage: | 3Φ 380V 50HZ |
| Electric Power Consumption: | 560 | Water Circulation: | 10t/h |
| Maximum Temperature: | 1800℃ | Warranty: | 1 Year |
| Highlight: | 1800C Industrial Metal Melting Furnace,500kg Industrial Metal Melting Furnace,400kw Industrial Metal Melting Furnace |
||
500kg Industrial Metal Melting Furnace For Making Aluminum Ingot
Induction melting furnace features:
Induction melting furnace are most used in foundry factory,rolling mill etc to use the waste metal material recycling to produce ingots.Induction melting furnace are customized under customer's workshop size.and working environment ,customer's special requirement.Fast melt speed.Can melt Waste iron,steel,aluminum cans ,lead,etc all kinds of metals.Steel and Aluminum structure furnace body design.Work stable.And the machine have multiple protection.With Good magnetic isolation,safe and reliable.
Power protection measures include:
Technical parameter of the 500kg Industrial Metal Melting Furnace For Making Aluminum Ingot
| Model | KGPS-300 | KGPS-500 | KGPS-1200 | KGPS-1400 | KGPS-2000 | KGPS-4500 |
|
Rated power |
300KW | 500KW | 1200KW | 1400KW | 2000KW | 4500KW |
|
Rated capacity |
350kg | 750kg | 1500kg | 2000kg | 3000kg | 6000kg |
|
Matching transformer’s capacity |
315KVA | 630KVA | 1250KVA | 1800KVA | 2500KVA | 5500KVA |
|
Input voltage |
380V 50-60HZ | 750V 50HZ | 750V 50HZ | 6x750V 50HZ | 6x750V 50HZ | |
|
MF frequency |
1000HZ | 1000HZ | 800HZ | 500HZ | 500HZ | 300HZ |
|
MF voltage |
750V | 750V | 1400V | 1480V | 1460V | 4800V |
|
DC voltage |
500V | 500V | 990V | 990V | 990V | 1350V |
|
DC current |
600A | 1000A | 1000A | 1410A | 1010A | 3300A |
|
Maximum temperature |
1800℃ | |||||

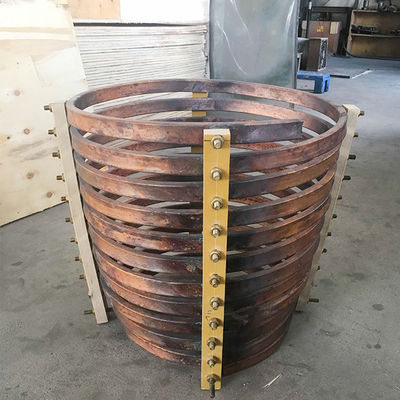

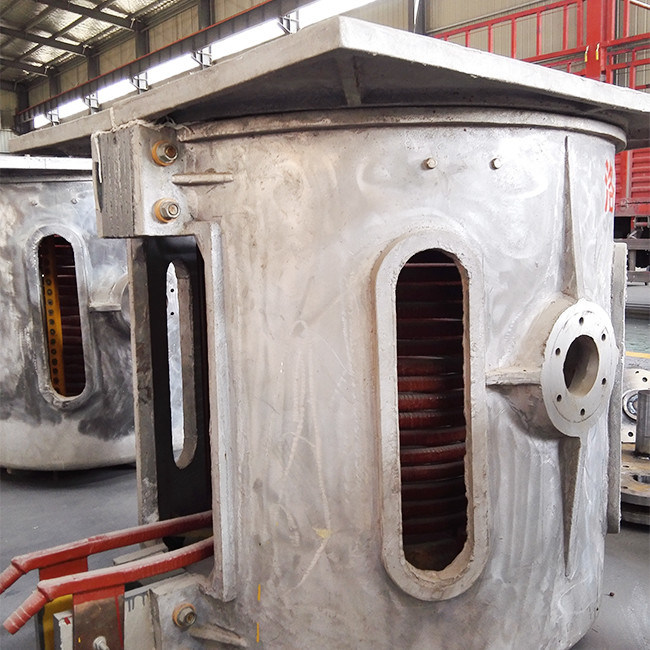

The aluminum sheell induction furnace details show:

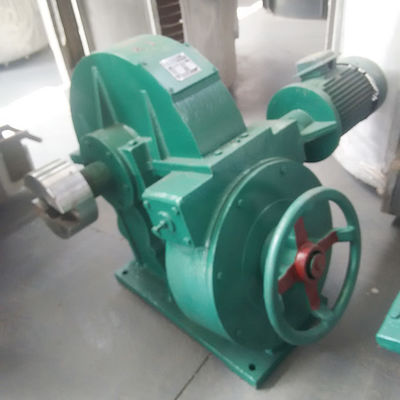

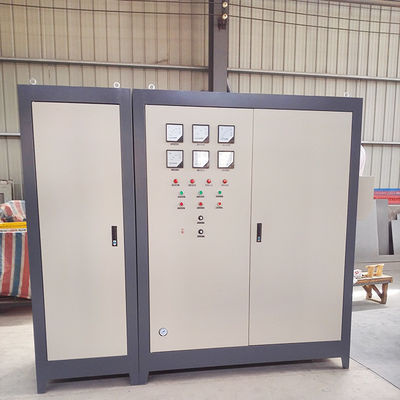

Complete equipment list:
The factory show:
