Product Details:
Payment & Shipping Terms:
|
| Product Name: | 500KG Induction Aluminum Shell Melting Furnace | Type: | Induction Furnace |
|---|---|---|---|
| Capacity: | 500kg | Power: | 400kw |
| Input Voltage: | 3Φ 380V 50HZ | Electric Power Consumption: | 560 |
| Water Circulation: | 10t/h | Condition: | New |
| Highlight: | 500KG Aluminum Shell Induction Melting Furnace,IRIS Aluminum Shell Induction Melting Furnace,400kw Electric Furnace For Melting Brass |
||

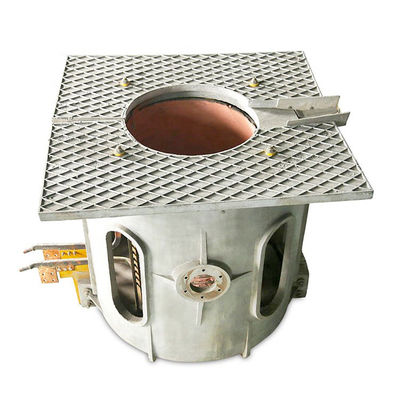

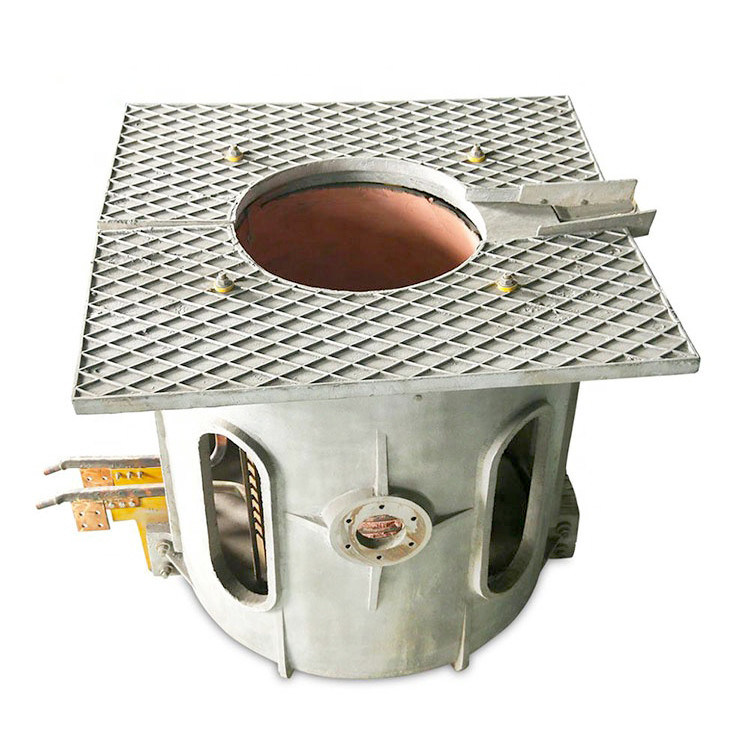

500KG Induction Aluminum Shell Melting Furnace Copper Aluminum Melting Furnace
Induction melting furnace features:
Adopting reduction gears tilting furnace device.The furnace body is made of alloy aluminum foundry casting. Simple operation, easy maintenance, convenient observation.

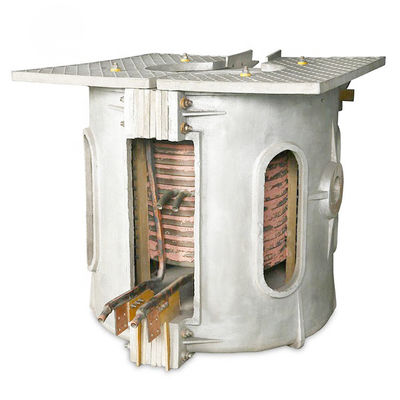

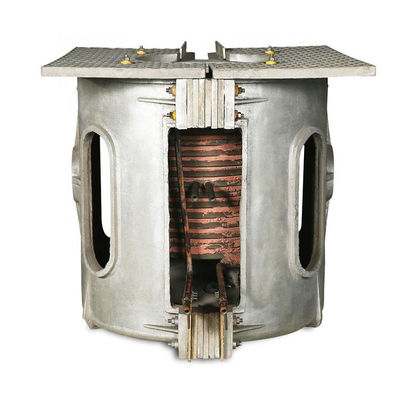

The aluminum shell furnace is composed of reduction gears, bracket and induction coil,etc.Mainly used for smelting cast iron, stainless steel, alloy steel, non-ferrous metals, including heavy metals (such as copper, lead) and precious metals (such as gold, silver),etc.The equipment is used in metallurgical industry, casting industry, non - metal smelting and other industries.
Power protection measures include:
Technical parameter of the Induction Steel Shell Melting Furnace Aluminum Casting Furnace
| Model | KGPS-300 | KGPS-500 | KGPS-1200 | KGPS-1400 | KGPS-2000 | KGPS-4500 |
|
Rated power |
300KW | 500KW | 1200KW | 1400KW | 2000KW | 4500KW |
|
Rated capacity |
350kg | 750kg | 1500kg | 2000kg | 3000kg | 6000kg |
|
Matching transformer’s capacity |
315KVA | 630KVA | 1250KVA | 1800KVA | 2500KVA | 5500KVA |
|
Input voltage |
380V 50-60HZ | 750V 50HZ | 750V 50HZ | 6x750V 50HZ | 6x750V 50HZ | |
|
MF frequency |
1000HZ | 1000HZ | 800HZ | 500HZ | 500HZ | 300HZ |
|
MF voltage |
750V | 750V | 1400V | 1480V | 1460V | 4800V |
|
DC voltage |
500V | 500V | 990V | 990V | 990V | 1350V |
|
DC current |
600A | 1000A | 1000A | 1410A | 1010A | 3300A |
|
Maximum temperature |
1800℃ | |||||
