Product Details:
Payment & Shipping Terms:
|
| Product Name: | PWHT Welding Post Weld Heat Treatment Stainless Steel Heating | Input Voltage: | 3*380v |
|---|---|---|---|
| Input Current: | 1-15A | Output Current: | 1-150A |
| 0utput Power: | 1-10KW | Output Frequency: | 5-30KHZ |
| Max Temperature: | Max 900℃ | Type: | Induction Heating Coil |
| Highlight: | 10kw PWHT Post Weld Heat Treatment,3*380v Post Weld Heat Treatment,Post Weld Heat Treatment For Stainless Steel |
||

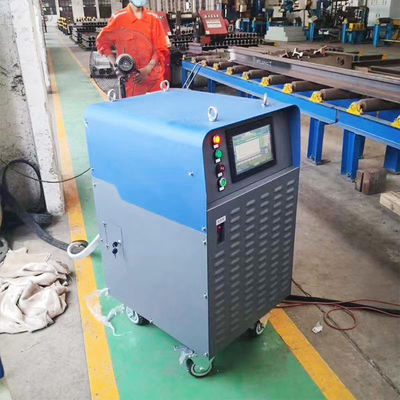

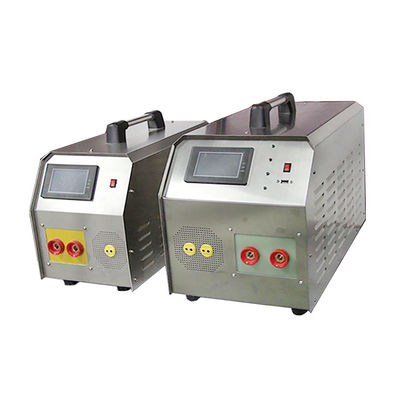

PWHT Welding Post Weld Heat Treatment Stainless Steel Heating

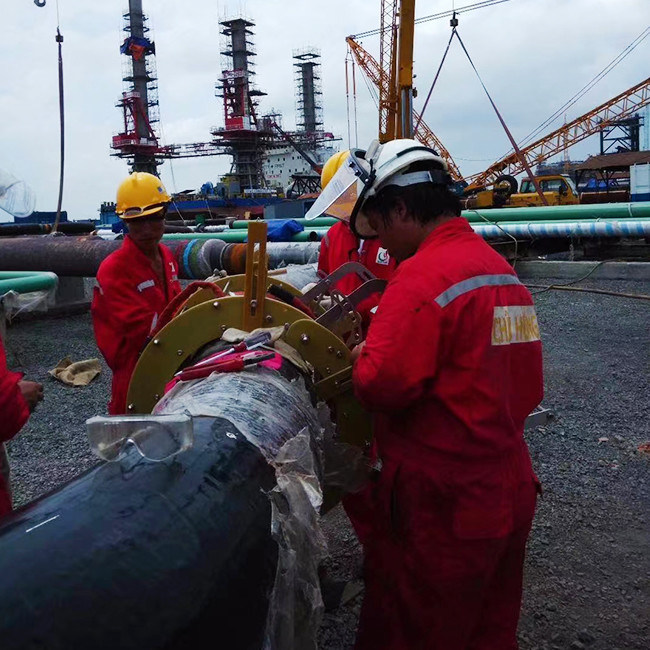

Applications and Main Using Fields
Technical parameter
| Model | MYD-10KW | MYD-20KW | MYD-30KW |
| input voltage | 3*380v | ||
| Input Current | 1-15A | 1-30A | 1-40A |
| Output Current | 1-150A | 1-200A | 1-250A |
| 0utput Power | 1-10KW | 1-20KW | 1-30KW |
| Output Frequency | 5-30KHZ | ||
| Thermocouple | K type | ||
| Max Temperature | Max 900℃ | ||
| Heating Pipeline Size | Dia:50-400mm | Dia:50-600mm | Dia:50-750mm |
| Heater Size | 500*350*400mm | 550*400*450mm | 750*450*700mm |
| Weight | 26kg | 30kg | 45kg |
| Induction Heating coil | |||
| Length | 15-30M | ||
| Diameter | 10 mm | 13 mm | 15 mm |
| Working Temperature | : 0-350℃ | ||
Features of PWHT Welding Post Weld Heat Treatment Stainless Steel Heating:
Friendly Interface and Accurate Control
The control board offers various parameters for setting so the heating process can be controlled precisely by giving value to temperature, time, heating rate, cooling rate, etc.
Various Control Mode
The interface offers two basic control mode to choose including temperature control and power control. The former one has 4 modes of preheat, bake-out, PWHT, custom. The last one has 2 modes ofconstant power and power VS time. Each mode offers different parameters to set. Thus brings the benefit of wide applicability and precise control.
Fault Record
Fault codes will display and be recorded for reference, and system will respond with protection action like shutdown once fault occurs such as open-loop output or short out.
Easy Maintenenace
Due to modular design, the maintance will be easy and low-cost.
Self Diagnosis
Once fault occurs, CR2000 will act with display of fault code, which was detailed explained in the manual book.
High Efficiency
This uniquely energy-efficient process converts up to 90% of the expended energy into useful heat, and time-to-temperature is faster than conventional processes due to the method of applying heat, reducing cycle time.
Uniform Heating
The heat is induced within the part itself by alternating electrical current, thus uniform temperature throughout the heating zone is realized.
Replaceable Heating Inductor
Apart from induction blanket (blanket type inductor), there are multiple heating inductors for choice including induction coil/cable, C-type inductor, plate type inductor, Split-core inductor, O type inductor, all of which are easily dismountable and reconnected to the power source. So the power source can be used for heating workpiece of different size and shape.
