Product Details:
Payment & Shipping Terms:
|
| Product Name:: | Copper Rod Casting Machine | Maximum Input Power: | 90KW |
|---|---|---|---|
| Oscillation Frequency:: | 1-20KHZ | Input Current:: | 135A |
| Output Voltage:: | 70-520V | Cooling Water Requirement:: | ≥ 0.2Mpa, ≥5L/min |
| Load Duration Rate:: | 100% | ||
| High Light: | Continuous Copper Rod Casting Machine,Copper Rod Casting Machine 90KW,90KW copper continuous casting machine |
||

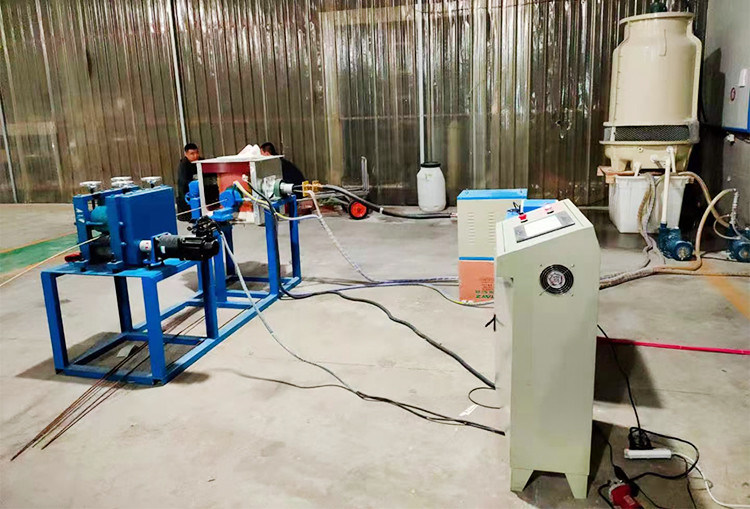

Horizontal Continuous Copper Rod Casting Machine 90KW For Aluminum
The copper Rod Casting Machine is used to produce small size products and is suitable for small output.Melting furnace and holding furnace are integrated.The furnace can produce irregularly shaped rod like hexagon,C,U and so on.
Technical parameter of the copper rod making machine:
| Model | IRIS-70 | IRIS-90 | IRIS-110 | IRIS-160 |
| Maximum input power | 70kw | 90kw | 110kw | 160kw |
| Oscillation frequency | 1-20KHZ | 1-20KHZ | 1-20KHZ | 1-10KHZ |
| Input Current | 105A | 135A | 170A | 240A |
| Output voltage | 70-520V | 70-520V | 50-520V | 70-520V |
| Input voltage | 3-phase 380V, 50/60HZ | |||
| Cooling water requirements | ≥ 0.2Mpa, ≥5L/min | |||
| Load duration | 1 | |||
Main equipment configuration of the copper rod making machine :
1. Melting and holding furnace: intermediate frequency power cabinet and furnace body
2. Crystallizer
3. Tractor
4. Temperature controller
5. Automatic winding machine
Accessories: main extension connection, water-cooled cable, wired remote control switch
Technical requirements for copper rod making machine
1. Purpose: Horizontal continuous casting production and processing of 2 Φ8 ± 0.3 mm and 8*40 rectangular copper alloy bars.
2. Production process: The copper alloy raw materials are melted at a high temperature and then cooled by a mold, and two Φ8 ± 0.5 mm copper wires and 8*40 square copper alloys are continuously drawn out.
3. Furnace body: The holding furnace is equipped with a set of power supply, and the effective value of the installed furnace is 50 kg (calculated by the copper material).
4. Melting furnace and holding furnace heating method: all solid-state IGBT transistor modular intermediate frequency induction heating, maximum temperature: 1500℃, temperature control accuracy: ±5℃.
5. Crucible requirements: silicon carbide isostatically pressed graphite material, reusable, continuous use at 1500°C for 300 hours and above.
6. Temperature measurement method: platinum rhodium thermocouple temperature measurement, temperature measurement location: the outer wall of the crucible.
7. Temperature control method: Intelligent temperature control, which can automatically control the temperature according to the set temperature, and realize the real-time display of the melt temperature.
8. Traction mode: servo motor, traction 1 piece, casting speed 0-0.75 m/min.
