Product Details:
Payment & Shipping Terms:
|
| Product Name: | Nitriding Furnace Die Mold | Application: | Metal Heat Treatment |
|---|---|---|---|
| Max Temperature: | 650 Degree | Voltage: | 380V |
| Temperature Control Accuracy: | Accurate Temperature Control | Vacuum Control Accuracy: | ±10Pa |
| Gas Control Accuracy: | ±0.1L | Power: | 160kw |
| Color: | Orange And Blue | Warranty: | 1year |
| High Light: | Die Mold Nitriding Furnace,650 Degree Nitriding Furnace,Die Mold nitriding machine |
||

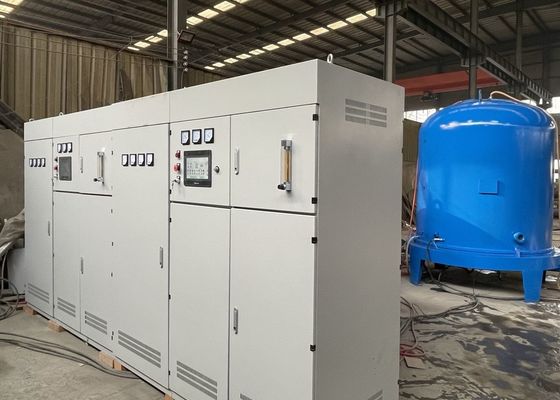

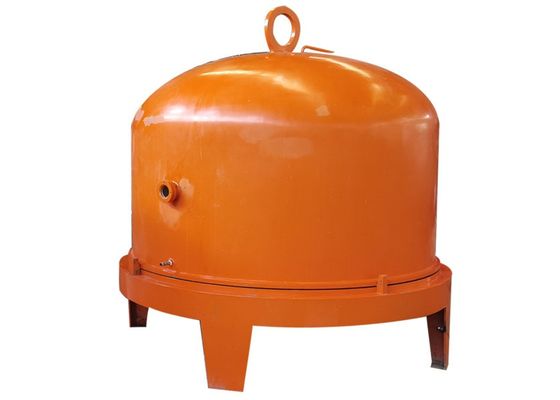

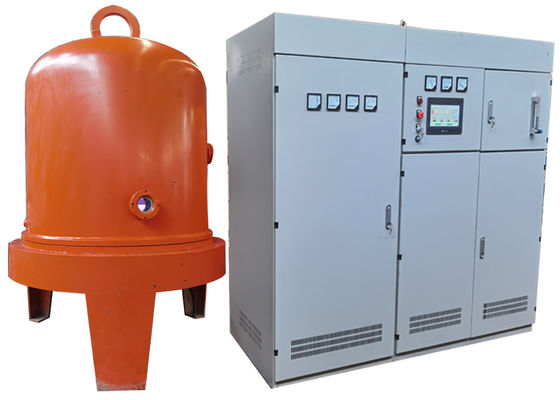

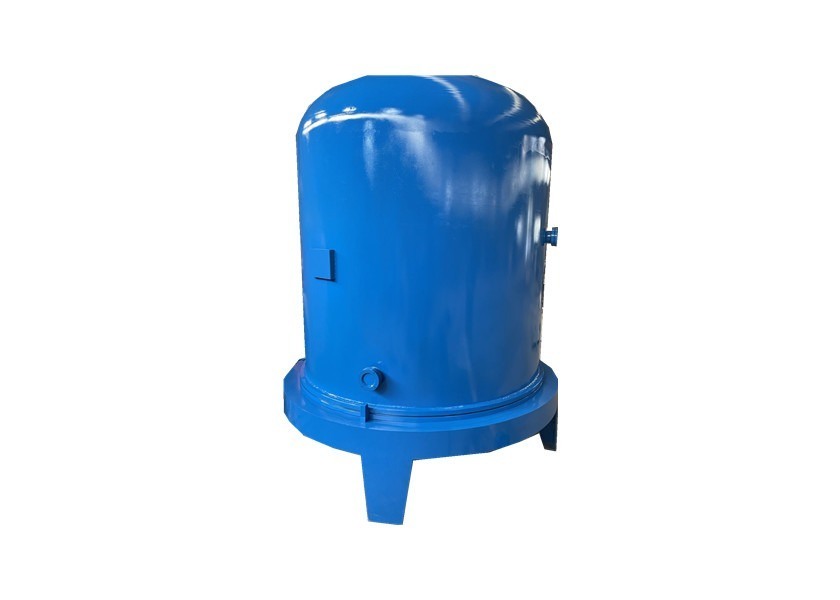

Nitriding Furnace Die Mold Nitriding Furnace Die Fast Nitriding Furnace Die For Sale
Main features
The furnace body has good sealing performance and low air leakage rate. Good maneuverability and high degree of automation.Pulse issuance and duty cycle adjustment, written by software, with high equipment stability.The vacuum pump is adjusted by frequency conversion, the vacuum degree control precision is high, and the mechanical wear of the vacuum pump is greatly reduced.The cause of the failure can be displayed directly on the display screen, and the troubleshooting is fast. It can be controlled remotely (mobile phone), which is convenient for opening the furnace.
Parameter
| Project | unit | 25A | 50A | 75A | 100A |
| Ultimate vacuum | Pa | 6.67 | |||
| Pressure rise rate | Pa/min | 0.0133 | |||
| Vacuum pump | pc | 2x-4 | 2x-8 | 2x-8 | 2x-8 |
| 2x-4 | 2x-8 | 2x-8 | 2x-15 | ||
| Furnace chamber size | mm | Φ760*800 | Φ1060*950 | Φ920*1200 | Φ1100*1200 |
| Maximum heating area | cm² | 1.25*104 | 2.5*104 | 3.5*104 | 5*104 |
| loading capacity | Kg | 600 | 800 | 1000 | 1200 |
| Maximum operating temperature | ℃ | 650 | 650 | 650 | 650 |
Product details
