| Product Name: | Vacuum Nitriding Furnace | Application: | Metal Heat Treatment |
|---|---|---|---|
| Max Temperature: | 650 Degree | Voltage: | 380V |
| Temperature Control Accuracy: | Accurate Temperature Control | Vacuum Control Accuracy: | ±10Pa |
| Gas Control Accuracy: | ±0.1L | Power: | 160kw |
| Color: | Orange And Blue | Warranty: | 1year |
Vacuum Nitriding Furnace Nitriding Furnace Ammonia Gas Gas Nitriding Furnace For Sale

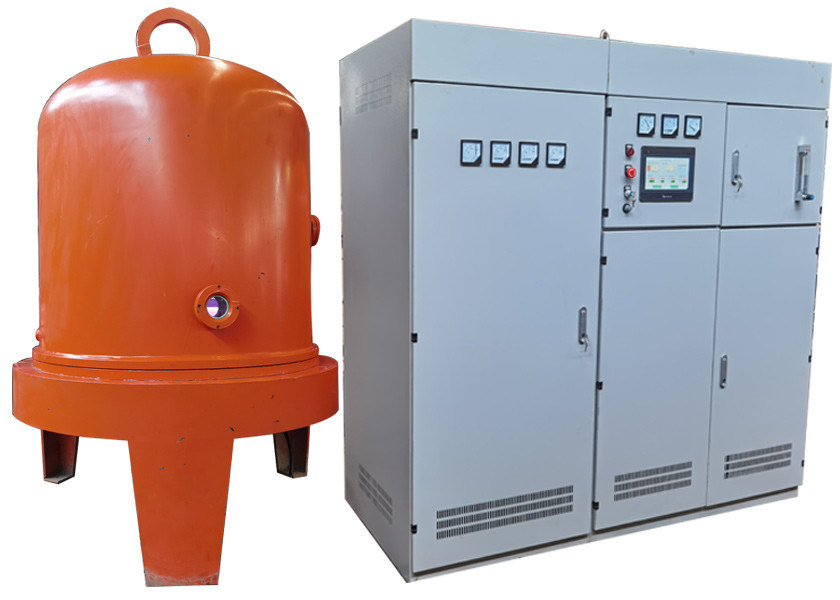

Equipment composition
1.Furnace body

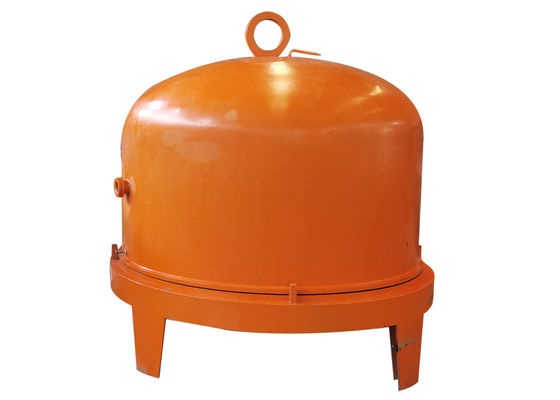

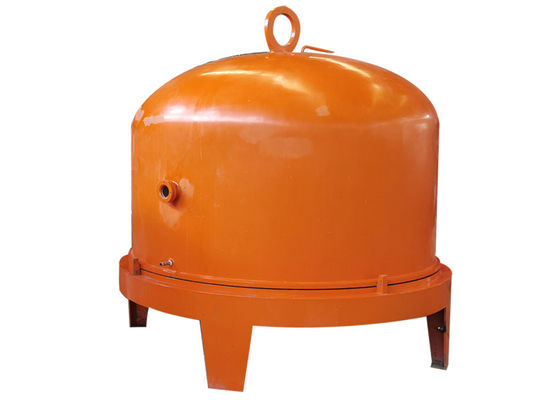

(1) Furnace hood
(2) The bottom of the oven
(3) Workbench: 1 floor in total
(4)Vacuum system: one
2. Three-input six-output step-up transformer

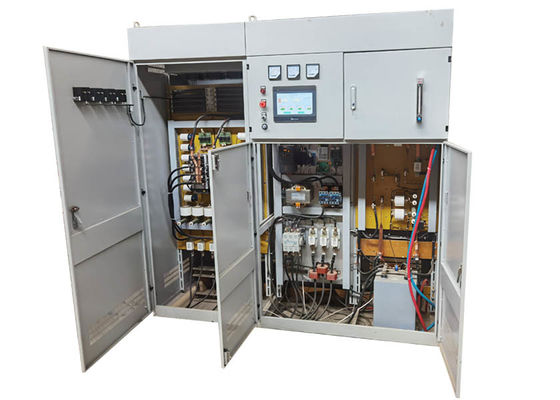

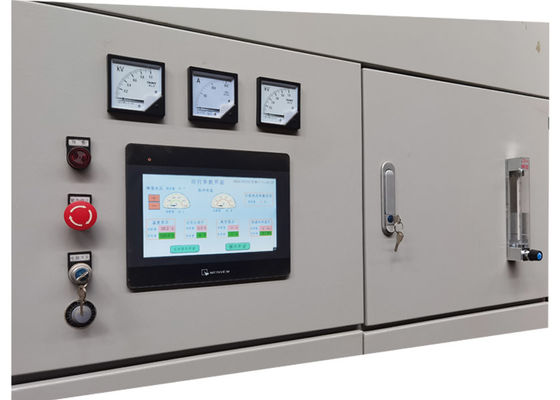

3. Control: three closed-loop adjustment systems, one set of main control PLC
(1) Oven temperature closed loop: thermocouple, temperature control instrument, chopper, IGBT form a temperature control closed loop system to realize parameter setting and measurement value display
(2) Closed-loop furnace pressure: vacuum gauge, vacuum control instrument and vacuum pump form a closed-loop vacuum control system to realize parameter setting and temperature value display. measure
(3) Closed-loop gas control: mass gas flow meter and flow control instrument form a closed-loop flow control system to realize parameter setting and measurement value display
(4) The main control PLC: coordination and control of each action, acquisition and output of analog quantities
Parameter
| Project | unit | 25A | 50A | 75A | 100A |
| Ultimate vacuum | Pa | 6.67 | |||
| Pressure rise rate | Pa/min | 0.0133 | |||
| Vacuum pump | pc | 2x-4 | 2x-8 | 2x-8 | 2x-8 |
| 2x-4 | 2x-8 | 2x-8 | 2x-15 | ||
| Furnace chamber size | mm | Φ760*800 | Φ1060*950 | Φ920*1200 | Φ1100*1200 |
| Maximum heating area | cm² | 1.25*104 | 2.5*104 | 3.5*104 | 5*104 |
| loading capacity | Kg | 600 | 800 | 1000 | 1200 |
| Maximum operating temperature | ℃ | 650 | 650 | 650 | 650 |
