Product Details:
Payment & Shipping Terms:
|
| Rated Power:: | 45Kw | Rated Voltage:: | 380V |
|---|---|---|---|
| Rated Temperature:: | 950℃ | Effective Heating Size: | Ф500×650 |
| Productivity: | 100Kg/h | Insulation Thickness:: | 380mm |
| Heating Method: | High Temperature Resistance Band | Roller Rotation Speed:: | Stepless Frequency Conversion Adjustment |
| Name: | Tempering Heat Treatment Furnace For Screw Heat Treatment And Concrete Nails | Key Word: | 150Kg/h Resistance Heating Furnace |
| High Light: | 650mm Tempering Heat Treatment Furnace,Dia 500mm heat treatment furnace,Screw Concrete Nails Tempering Furnace |
||
Tempering Heat Treatment Furnace For Screw Heat Treatment And Concrete Nails
1. compact structure, Economic Space Occupation, high produce Efficiency
2. heating up evenly, upgrades heat treatment quality
3. Have a variety of pipe fittings, spare can realize all kinds of chemical processing
4. Furnace tilting and discharging is convenient.
Tempering Heat Treatment Furnace For Screw Heat Treatment And Concrete Nails
Application: This series of roller resistance furnace used for gas carburizing , carbonitriding and bright quenching on light industry, textile, instruments, electrical appliances, bearings and other industries, especially suitable for mass production of small parts, such as bicycle parts, sewing machine parts, ball bearings, roller and other parts of the heat treatment.
Technical parameter of the Tempering Heat Treatment Furnace For Screw Heat Treatment And Concrete Nails
| Rated power | 60Kw |
| Rated voltage | 380V |
| Number of phases | 3 phases |
| Rated frequency | 50Hz |
| Rated temperature | 950℃ |
| Number of temperature control zones | 1 zone |
| Effective drum heating size | Ф500×650 |
| Equipment dimensions |
2450×2300×2150mm |
| Weight | 2960Kg |
| Heating method | high temperature resistance band |
| Productivity | 150Kg/h |
| Temperature control method | Intelligent digital display instrument and PID temperature control; with over-temperature alarm |
| Furnace temperature uniformity | ≤±8℃ (constant heat preservation stage) |
| Furnace surface temperature rise | ≤environment+30℃ |
| Temperature control accuracy | ≤±2℃ |
| Furnace structure | full fiber structure, the roof of the furnace can be lifted to facilitate the loading of the drum |
| Insulation thickness | 380mm |
| Roller rotation speed | stepless frequency conversion adjustment |

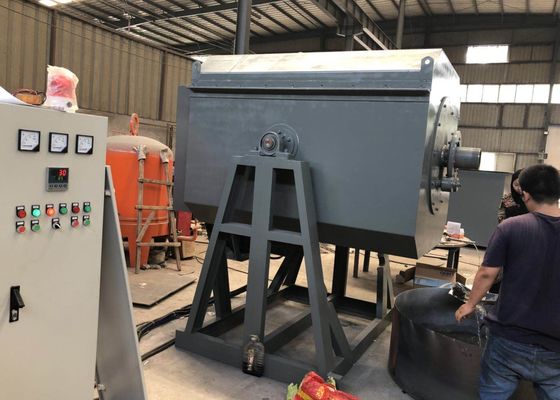

Anti-oxidation furnace show:

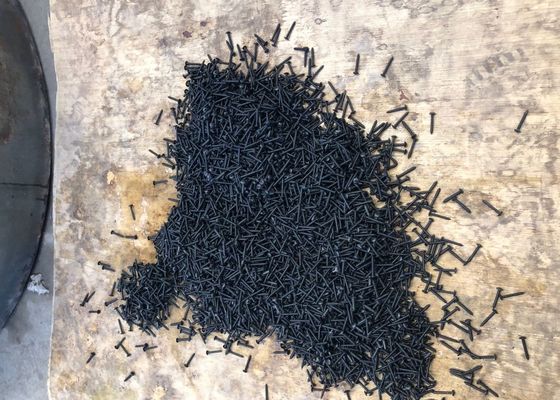

Final product show:
