| Product Name: | Heat Treating Quenching Furnace Metal | Temperature: | 750 Degree |
|---|---|---|---|
| Size: | 1600×1800×2100 Mm | Power: | 65kw |
| Furnace Weight: | 2500 Kg | Max Capacity: | 400kg |
| High Light: | 65kw Heat Treating Quenching Furnace,Customized Quenching Furnace For Aluminum,Heat Treating Furnace For Aluminum |
||

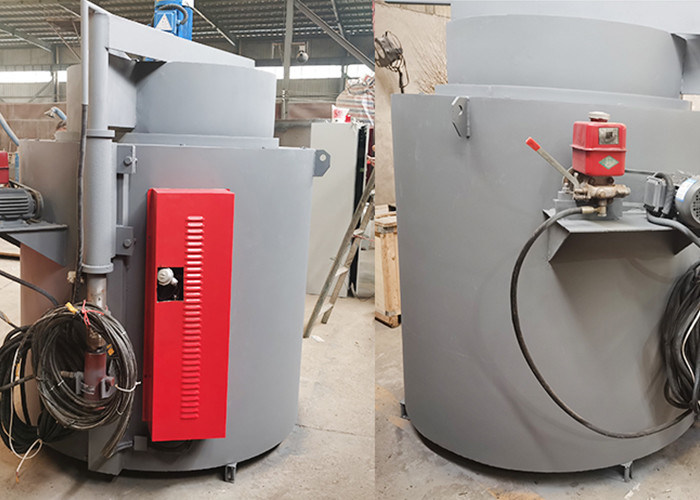

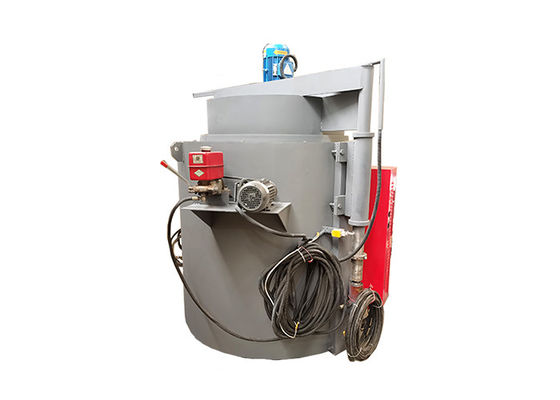

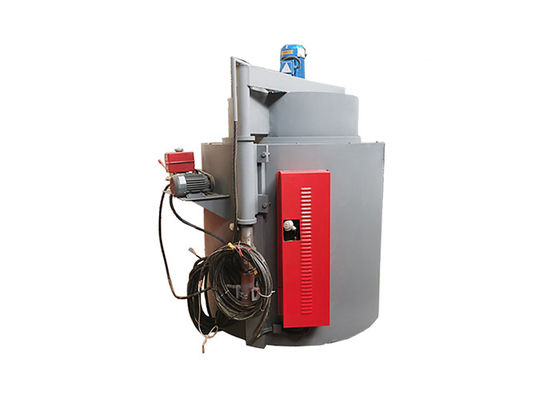

Heat Treating Quenching Furnace Metal Aluminum Quenching Furnace For Sale
Heat Treatment Quenching Furnace Japan
The electric heating element adopts 0Cr21Al6Nb high temperature resistance belt produced by Beijing Shougang, which has the characteristics of high temperature resistance and long service life.
The hot air circulation system consists of a fan, a fan blade, an air guide plate and an air guide tube. The fan is placed on the top of the furnace cover, and the fan blade is made of heat-resistant steel to form a centrifugal fan blade. The air guide plate and air guide tube in the Heat Treating Quenching Furnace are also made of heat-resistant steel. The furnace gas in the Heat Treating Quenching Furnace is thermally circulated through the hot air circulation system to ensure the uniformity of heating the aluminum alloy workpiece in the Heat Treating Quenching Furnace .
The Heat Treating Quenching Furnace cover lifting mechanism is composed of furnace cover, supporting shaft, large shaft support, lifting arm, hydraulic power and so on. The structure is simple, the lifting speed is fast, and the performance is reliable, so the cavitation rate is extremely low;
Parameter
| Effective size | Ф700mm×1000mm |
| Rated power | 65KW |
| Maximum temperature | 750 ℃ |
| Heating zones | 1 zone |

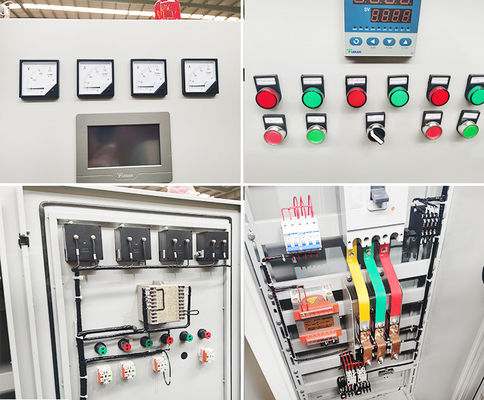

| Temperature control | intelligent instrument PID |
| Power executive components | SSR360A/1100V solid state power module |
| Temperature control deviation | ±2°C |
| Temperature control accuracy | 0.3 grade |
| Soaking method | forced convection with fan on the furnace top |
| Furnace temperature uniformity | ≤±3℃ |
| Rated furnace capacity | ≤400Kg |
| Heating time of empty furnace | ≤1.2h |
| Empty furnace loss | ≤20KW |
| Furnace wall temperature rise | ≤ ambient +30 ℃ |
| Furnace cover lifting method | hydraulic |
| Furnace weight | 2800Kg |
| Dimensions | 1600mm×1800mm×2100mm |
