Product Details:
Payment & Shipping Terms:
|
| Product Name: | Industrial Muffle Furnace | Power: | 120 Kw |
|---|---|---|---|
| Furnace Chambersize: | 100*100*100cm | Working Temperature: | 1100℃ |
| Voltage: | 220V 50hz | Heating Element: | Carbon Rod |
| Furnace Color: | Blue/white | Open Way: | Left |
| Application: | Heat Treatment | Field: | Laboratory, Factory,industrial |
Products Description
Accurate temperature control 120kw industrial muffle furnace heat treatment furnace mainly used in chemical analysis, physical decomposition and synthesis,superhard materials (such as ceramic), Rare and precious metal smelting and purification,metal heat treatment of sintering process research and other scientific experiments. Universities and colleges, scientific research institutes, medical and health, petroleum chemical industry, mining enterprise, quality and technology supervision agencies, and other units laboratory, laboratory are the use of such equipment.
Accurate temperature control 120kw industrial muffle furnace heat treatment furnace is made by welding high-quality cold-rolled plates. The hearth is sintered with silicon carbide or high-aluminum materials. The heating element is made of high-temperature resistance wire or silicon-carbon rod, made of lightweight bricks or silicon wool felt as insulation materials, and the surface is made of high-temperature paint.
Product Paramenters
| Model | Max temperature | Voltage | Power | Chamber Size |
| IRIS-12-2.5 | 1200℃ | 220V/380V 50HZ | 2.5kw | 80*120*200 mm |
| IRIS-12-5 | 1200℃ | 220V/380V 50HZ | 5kw | 120*200*300 mm |
| IRIS-12-10 | 1200℃ | 220V/380V 50HZ | 10kw | 160*250*400 mm |
| IRIS-12-12 | 1200℃ | 220V/380V 50HZ | 12kw | 200*300*500 mm |
| IRIS-14-5 | 1400℃ | 220V/380V 50HZ | 5kw | 120*200*300 mm |
| IRIS-14-6 | 1400℃ | 220V/380V 50HZ | 6kw | 200*200*200 mm |
| IRIS-14-10 | 1400℃ | 220V/380V 50HZ | 10kw | 160*200*400 mm |
| IRIS-14-15 | 1400℃ | 220V/380V 50HZ | 15kw | 300*300*300 mm |
| IRIS-17-16 | 1700℃ | 220V/380V 50HZ | 16kw | 200*300*500 mm |

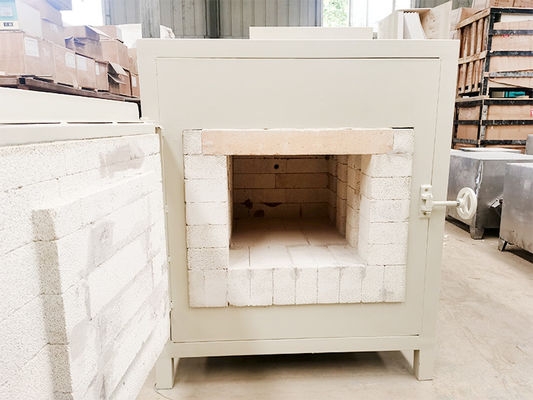

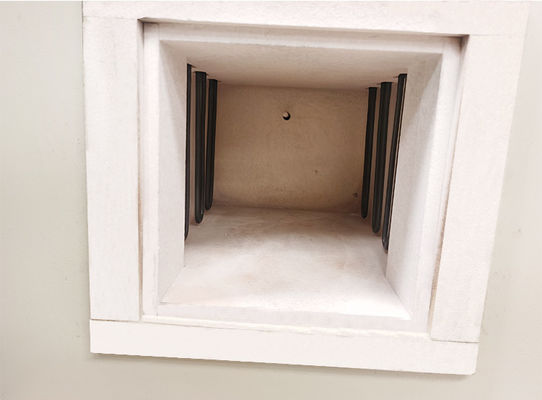

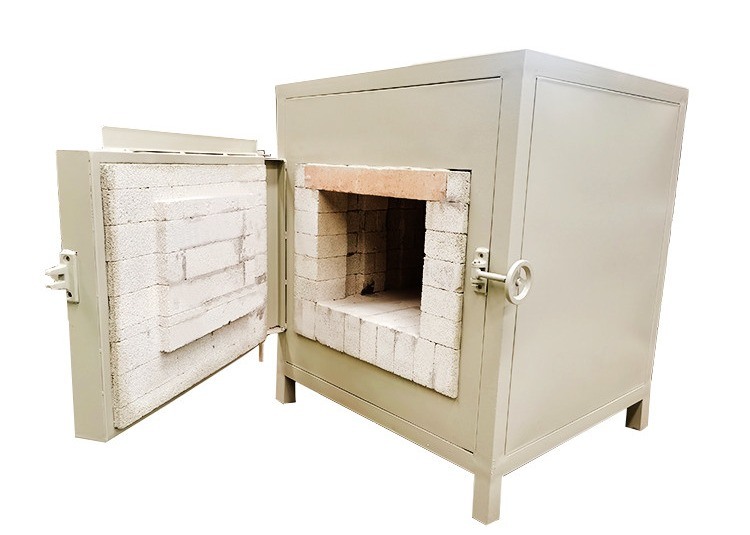

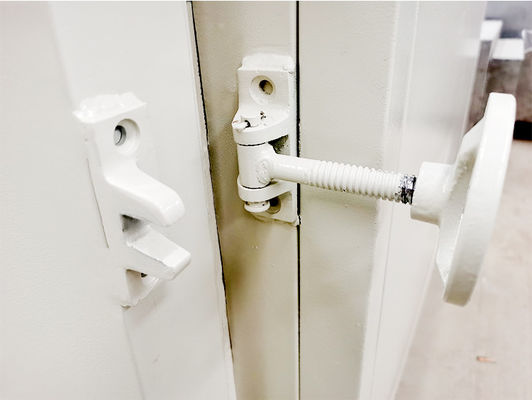

Details Images
The furnace shell of the Accurate temperature control 120kw industrial muffle furnace heat treatment furnace is welded by Pu steel plate, and the exterior is coated with high-quality high-temperature paint. It is welded by folding. TheLaboratory Box furnace lining is composed of advanced high-purity ceramic fiber material, which has good thermal insulation effect and small heat loss. The ceramic fiber board and ceramic fiber are filled between the furnace lining and the furnace shell, which reduces the temperature of the furnace surface and reduces the weight of the furnace body. The heating element adopts high-quality silicon-molybdenum rods and the maximum temperature can reach 1700 degrees. The silicon-molybdenum rods are evenly arranged on the left and right parts of the furnace, so that the temperature in the furnace is more uniform and the heating speed is fast. It is 1/3 of the original muffle furnace and the original power is also large. reduced to achieve the effect of energy saving. The temperature measurement adopts B-type high temperature resistant special customized thermocouple, which is inserted from the back of the electric furnace and fixed by the fixed seat. The furnace door is connected and fixed on the furnace shell box by hinges, and the furnace door is made of high-quality monolithic ceramic materials with good heat insulation effect.
