Product Details:
Payment & Shipping Terms:
|
| Product Name: | Silver Melting Equipment | Application: | Melting Steel Iron Copper Other Metal |
|---|---|---|---|
| Power: | 45kw | Voltage: | 220v/380v |
| Cooling Water: | 5L/min | Current: | 15-95A |
| OEM: | OK | Melting Time: | 25mins |
| Capacity: | 50kg Copper | Cooling Temperature: | >50C |
The medium frequency furnace is a power supply device that converts the power frequency 50Hz alternating current into the medium frequency (above 300Hz to 1000Hz). It converts the three-phase power frequency alternating current into direct current after rectification, and then converts the direct current into adjustable medium frequency current to supply the medium frequency alternating current flowing through the capacitor and induction coil. It generates high-density magnetic lines in the induction coil, cuts the metal materials contained in the induction coil, and generates a large eddy current in the metal materials.

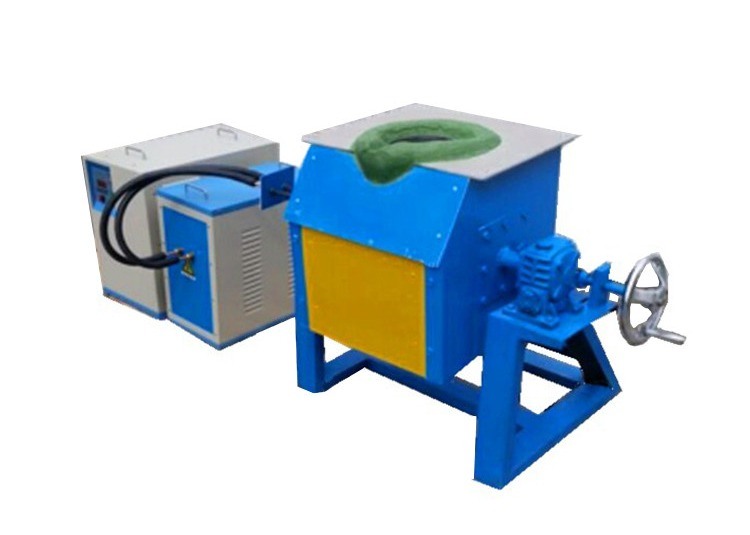

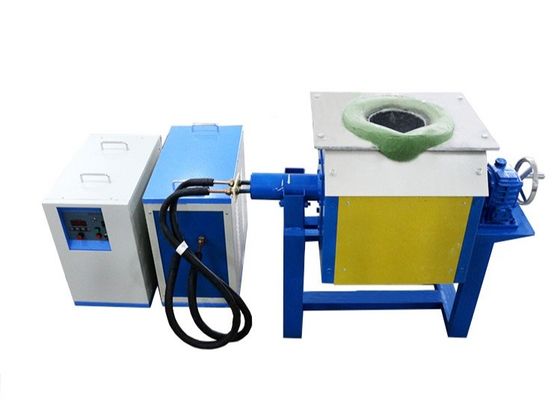

45kw medium frequency IGBT precious metal and silver melting equipment feature
45kw medium frequency IGBT precious metal and silver melting equipment heating principle

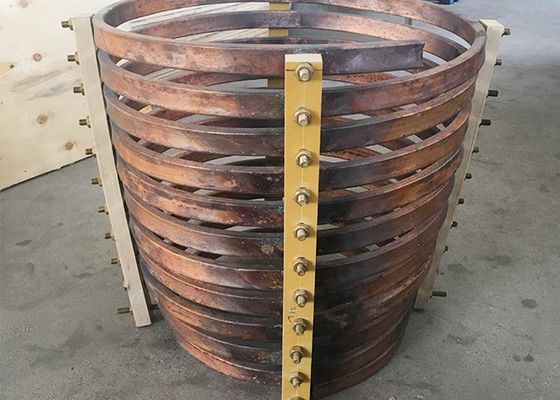

The flow of high-frequency and high-frequency machine is made of circular or other shape of the heating coil (usually with copper production). A coil which produces changes in the magnetic polarity of the instantaneous beam, the metal object is heated coil placed on the magnetic beam will be heated through the whole object, the object being heated inside the heating current in the opposite direction, there will corresponding large eddy currents. Because of the heated object memory in the resistance, it will have a lot of Joule heat, so that the rapid rise in body temperature itself. Metallic material is heated to achieve for all purposes.
45kw medium frequency IGBT precious metal and silver melting equipment technical parameter
| Output power | 15KW | Dimension(mm) | 460*360*365mm |
| Oscillation frequency | 1~20KHz | Gross Weight | 290Kg |
| Voltage range | 360V~420V | Cooling water pressure | 0.1~0.3MPa |
| Input current | 35A | Cooling water temperature | < 50°C |
| Efficiency | 95% | Duty cycle | 100% |
| Application | Melting gold, silver, copper, iron, steel, stainless steel, platinum and any metal items | ||
45kw medium frequency IGBT precious metal and silver melting equipment packaging & delivery
1. All the goods will be test and packed well before shipping to avoid damage during delivery.
2. Plastic inside,Polyfoam filled,Carton Outside.
3. Usually we send the goods by express delivery such as DHL, FedEx, UPS, TNT. For a large quantity of goods, shipping by sea or by air.
Our service
In-sale service
1. Strictly manufacture the machine, according to relevant technical standards.
2. Take run test, according to relevant equipment test run regulations.
3. Strictly check up the machine, before delivery
4. Delivery on time.
