Product Details:
Payment & Shipping Terms:
|
| Product Name: | Metal Crucible Furnace | Application: | Melting Steel Iron Copper Other Metal |
|---|---|---|---|
| Power: | 70kw | Voltage: | 220v/380v |
| Cooling Water: | 5L/min | Current: | 130A |
| Visit Company: | Welcome | Melting Time: | 5-8mins |
1.This furnace is using the IGBT power devices, our electric furnaces are much more integrated and miniaturized . Effective output power could reach 95%,even higher.
2.Using the subminiature MF induction heating power resource, could save15%- 30% power compared with traditional thyristor medium frequency furnace.
3.MF magnetic field has functions of stirring the molten metal . It helps the metal composition uniform.
4.Generally , our engineers will recommend a type of our melting furnace to you based on the job you do .
5.Perfect and complete protection functions, increasing machine’s reliability and stability.
6.No special foundations required, low operating cost , easy to operation.
7.Modular design, ease of maintaining and repairing.

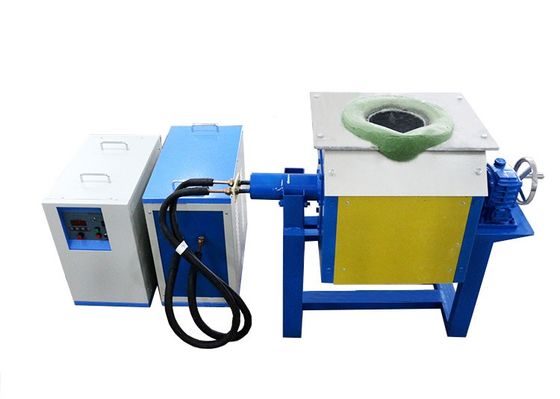

No noise no dust no pollution metal crucible furnace feature
No noise no dust no pollution metal crucible furnace heating principle
The flow of high-frequency and high-frequency machine is made of circular or other shape of the heating coil (usually with copper production). A coil which produces changes in the magnetic polarity of the instantaneous beam, the metal object is heated coil placed on the magnetic beam will be heated through the whole object, the object being heated inside the heating current in the opposite direction, there will corresponding large eddy currents. Because of the heated object memory in the resistance, it will have a lot of Joule heat, so that the rapid rise in body temperature itself. Metallic material is heated to achieve for all purposes.
No noise no dust no pollution metal crucible furnace main model
| Model | Aluminum | Copper | Stainless |
| MF-15KW | 3kg | 10kg | 3kg |
| MF-25KW | 5kg | 20kg | 5kg |
| MF-35KW | 10kg | 30kg | 10kg |
| MF-45KW | 18kg | 50kg | 18kg |
| MF-70KW | 25kg | 100kg | 25kg |
| MF-90KW | 40kg | 120kg | 40kg |
| MF-110KW | 50kg | 150kg | 50kg |
| MF-160KW | 100kg | 250kg | 100kg |
No noise no dust no pollution metal crucible furnace technical parameter
| Output power | 15KW | Dimension(mm) | 460*360*365mm |
| Oscillation frequency | 1~20KHz | Gross Weight | 290Kg |
| Voltage range | 360V~420V | Cooling water pressure | 0.1~0.3MPa |
| Input current | 35A | Cooling water temperature | < 50°C |
| Efficiency | 95% | Duty cycle | 100% |
| Application | Melting gold, silver, copper, iron, steel, stainless steel, platinum and any metal items | ||
No noise no dust no pollution metal crucible furnace packaging & delivery
1. All the goods will be test and packed well before shipping to avoid damage during delivery.
2. Plastic inside,Polyfoam filled,Carton Outside.
3. Usually we send the goods by express delivery such as DHL, FedEx, UPS, TNT. For a large quantity of goods, shipping by sea or by air.
Company Information
1.Professional induction melting furnace manufacture for more than 10 years.
2.All product have CE and ISO9001 certificate.
3.Last year sales revenue: 12 million RMB.
4.Export to India, Philipine and other countries
