Product Details:
Payment & Shipping Terms:
|
| Product Name: | Pit Type Electric Heating Quenching Furnace For Steel Parts Resistance Quenching | Type: | Resistance Furnace |
|---|---|---|---|
| Rated Voltage: | 3*380V / 50-60Hz | Rated Power: | 65KW |
| Number Of Heating Zones: | 1 Zone | Temperature Control Method: | Intelligent Instrument PID Control |
| Power Actuator: | SSR300A/1700V SCR Module | Rated Furnace Capacity: | 400Kg |
| Empty Furnace Heating Time: | ≤1.2h | Furnace Cover Lifting Method: | Hydraulic |
| Highlight: | 65KW Resistance Heating Furnace,650c Resistance Heating Furnace,65KW electric resistance furnace |
||

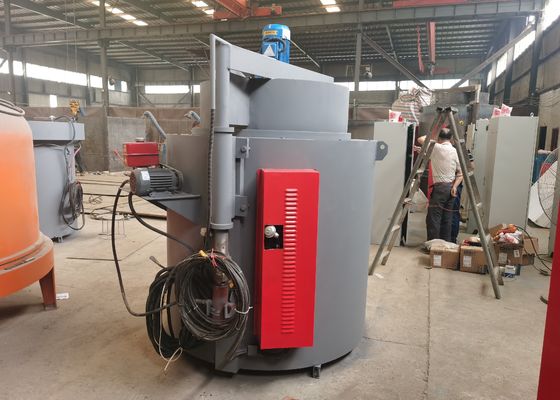

Pit Type Electric Heating Quenching Furnace For Steel Parts Resistance Quenching
Aluminum alloy quenching furnace is suitable for quenching, aging and other heat treatment of medium and small aluminum alloy parts. Due to the particularity of the workpiece and process, the electric furnace is required to have high technical performance in terms of temperature control accuracy, temperature control deviation, and furnace gas uniformity.

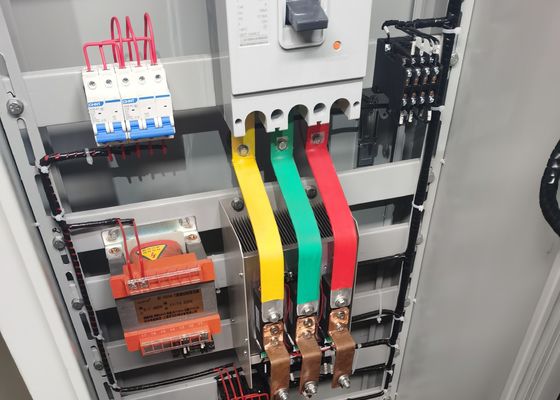

The complete set of equipment consists of furnace body, hot air circulation system, furnace cover lifting mechanism, control cabinet and other systems.The outer shell of the furnace body is formed by welding plates, the inner refractory layer is made of high-quality refractory bricks, and the insulation layer is made of fiber structure. A layer of asbestos board is attached to the inner surface of the furnace shell to provide heat insulation and protect the surface of the furnace shell from corrosion. In order to ensure that the furnace lining has both good thermal insulation performance and certain structural strength, the furnace chamber is made of compressed high-aluminum fiber folded blocks.
The paramter of the Pit Type Electric Heating Quenching Furnace For Steel Parts Resistance Quenching
| Effective size | Ф700mm×1000mm |
| Rated power | 65KW/45KW |
| Rated voltage | 380V |
| Maximum temperature | 650℃ (until the workpiece is damaged, the instrument sets the maximum input upper limit) |
| Number of heating zones | 1 zone |
| Temperature control method | intelligent instrument PID control |
| Power actuator | SSR300A/1700V SCR module |
| Temperature control deviation | ±2℃ (during heat preservation) |
| Temperature control accuracy | 0.3 level |
| Soaking method | soaking by the top fan |
| Furnace temperature uniformity | ≤±3℃ (five-point temperature measurement in the furnace during the test) |
| Rated furnace capacity | 400Kg |
| Empty furnace heating time | ≤1.2h |
| Empty furnace loss | ≤12KW |
| Furnace wall temperature rise | ≤environment+30℃ |

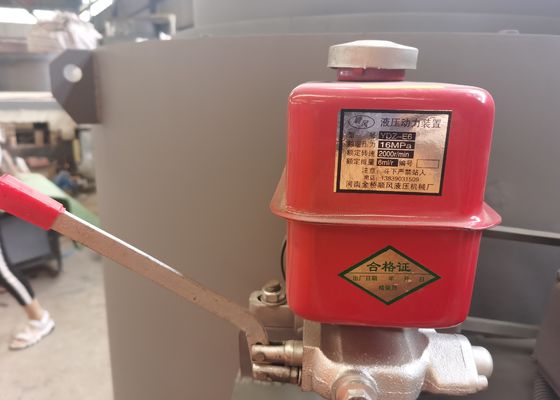

| Furnace cover lifting method | hydraulic |
| Furnace weight | 2800Kg |
