Product Details:
Payment & Shipping Terms:
|
| Product Name: | High Frequency Induction Heating Machine Small Steel Metal Melting Furnace | Material: | Steel |
|---|---|---|---|
| Capacity: | 3 Kg | Power: | 25kw |
| Meltimg Time: | 10 Mins | Module: | IGBT |
| Type: | Induction Furnace | Application: | Mutifunctional |
| Highlight: | 3kg high frequency induction heating machine,25kw high frequency induction heating machine,25kw 3kg electric metal melting furnace |
||

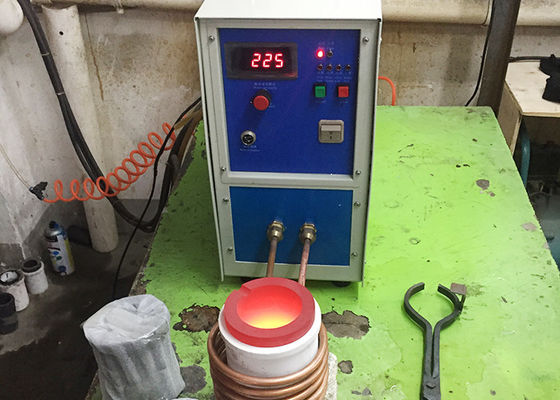

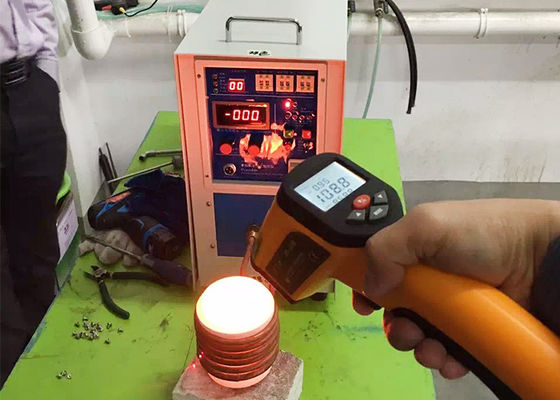

High Frequency Induction Heating Machine Small Steel Metal Melting Furnace
Main Features
1. Siemens IGBT module and Inverting technologies of third generation been used; Higher reliability and lower maintenance cost.
2. 100% Duty cycle, continuous working is allowed at maximum power output.
3. Display of heating power and heating current and oscillating frequency;
4. Simple to install, Installation can be done by unprofessional person very easily;
5. Light weight
7. Advantages of the model with timer: The power and the operating time of the heating period and the retain period can be preset respectively, to realize a simple heating curve, this model is suggested to use for batch production to improve the repeatability.
Application of the High Frequency Induction Heating Machine Small Steel Metal Melting Furnace:
Heat treatment for various hardware and tools, such as plier, wrench, hammer, ax,screwing tools and shear
Heat treatment for various automobile and motorcycle fittings, such as crankshaft,connecting rod, piston pin, chain wheel, aluminum wheel, valve, rock arm shaft,semi drive shaft, small shaft and fork.
Heat treatment for various electric tools, such as gear and axes.
Heat treatment for machine tools,such as lathe deck and guide rail.
Hardening for various hardware metal parts and machined parts, such as shaft,gear chain wheel, cam,chuck and clamp etc.
Heating for hardware molds, such as small-size mold, mold accessory and inner hole of mold.
Annealing of various stainless steel products, such as stainless steel basin,annealed and extruded can, annealed folded edge, annealed sink, stainless steel tube, tableware and cup.
Forging of various other metal work pieces, such as round steel, sheet/plate, pipe and others.
Specifications of the High Frequency Induction Heating Machine Small Steel Metal Melting Furnace
| Model | Power | Melting capacity for different materials | ||
| Iron, steel | Gold, silver, copper | Alluminium | ||
| GP-15 | 5KW | 0.5KG | 2 KG | 0.5 KG |
| GP-25 | 8KW | 1 KG | 4 KG | 1 KG |
| ZP-15 | 15KW | 3KG | 10KG | 3KG |
| ZP-25 | 25KW | 5KG | 20KG | 5KG |
| ZP-35 | 35KW | 10KG | 30KG | 10KG |
Spare parts crucibles:
