Product Details:
Payment & Shipping Terms:
|
| Product Name: | Medium Frequency Induction Steel Smelting Machine Melting Temperature 1600℃ | Model: | 45kw |
|---|---|---|---|
| Voltage:: | 380v | Output Current:: | 5-70A |
| Oscillation:: | 1-20HZ | Melting Material: | Steel |
| Capacity:: | 20kg | Melting Time: | 30 Mins |
| Melting Temperature: | 1600 ℃ | Furnace Type: | IGBT |
| Highlight: | Medium Frequency Induction Smelting Furnace,1600C Induction Smelting Furnace,45KW Small Metal Smelter |
||
Medium Frequency Induction Steel Smelting Machine Melting Temperature 1600℃
Medium Frequency Induction Steel Smelting Machine Melting Temperature 1600℃ technical parameter:
Maximum input power: 45KW
Oscillation frequency: 1-20KHZ
Maximum input current: 70A
Output voltage: 50-520V
Input voltage: three-phase 380V, 50 or 60HZ
Cooling water requirements: ≥ 0.2Mpa, ≥ 5L/min
Load duration: 100%
Melting time: 30 mins
Melting temperature: 1600℃
Melting capacity: 20kg
Main models of the Medium Frequency Induction Steel Smelting Machine Melting Temperature 1600℃:
| Model | Aluminum | Copper | Stainless |
| MF-15KW | 3kg | 10kg | 3kg |
| MF-25KW | 5kg | 20kg | 5kg |
| MF-35KW | 10kg | 30kg | 10kg |
| MF-45KW | 18kg | 50kg | 18kg |
| MF-70KW | 25kg | 100kg | 25kg |
| MF-90KW | 40kg | 120kg | 40kg |
| MF-110KW | 50kg | 150kg | 50kg |
| MF-160KW | 100kg | 250kg | 100kg |

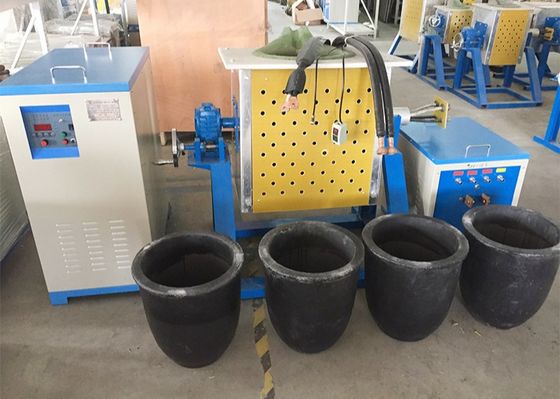

Smelting metals such as Gold,Sliver, Copper, Bronze, Brass, Steel,Aluminum etc.Small capacity smelt of them , the best chooise is the Medium Frequency Furnace Induction Melting Machine.Small medium frequency melting furnace includes power supply cabinet, capacitor cabinet and melting furnace body.

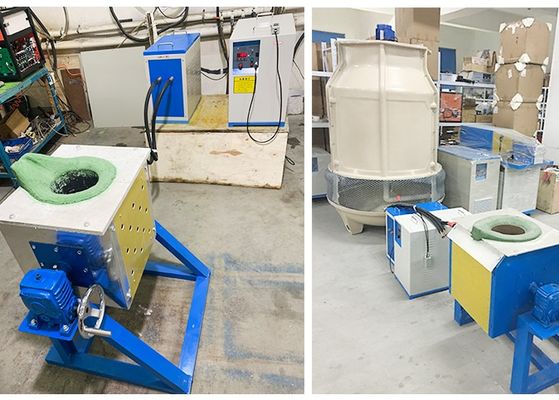

Medium Frequency Induction Steel Smelting Machine Melting Temperature 1600℃ shipping picture shows:
