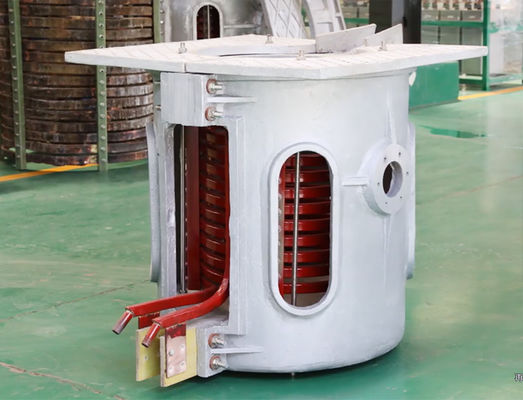

480A 60 Minutes 500KG Copper Iron Smelting Furnace For Aluminium Melting

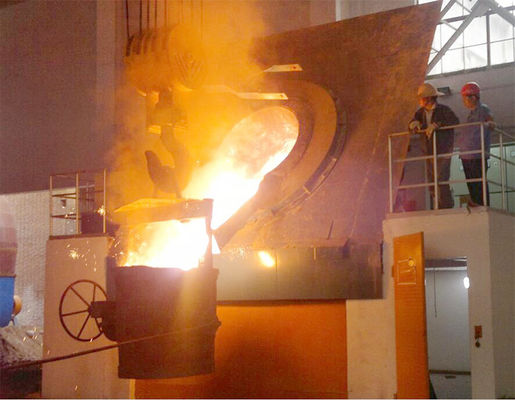

Induction Melting Furnace Applications used for steel, iron ,copper ,aluminum melting before casting.This electric furnace is applicable for melting, heating and holding of steel, copper, inron, aluminum, zinc, tin, nickel and toher ferrous of nonferrous metal.This electric furnace can also be used for forging, sintering and tube-bending forming in casting and melting industrials.

Product Features

1. Fast speed of melting, energy saving, less burnt loss, pure molten liquid.
2. Customerized design acceptable
3. No pollution
4. High heating speed
5. Low power consumption
6. High temperature accuracy



Technical Parameter

Basic Parameters
Capacity	Power	Voltage	Cabinet size (mm)	Cabinet weight	Furnace Body weight
100KG	100KW	3*380V	1000*800*1700	0.5T	0.3T
250KG	250KW	3*380V	1300*850*2000	0.8T	0.7T
500KG	400KW	3*380V	1300*850*2000	1T	1T
1T	800KW	3*660V	1300*850*2000	1.2T	1.3T
1.5T	1000KW	3*660V	1300*850*2000	1.2T	1.8T
2T	1500KW	3*660V	2400*1000*2000	1.6T	2T
5T	3000KW	6*950V	2400*1000*2000	2.5T	4.5T
10T	6000KW	6*1250V	3500*1000*2200	3T	23T
15T	10000KW	6*1250V	4000*1200*2200	3.5T	32T

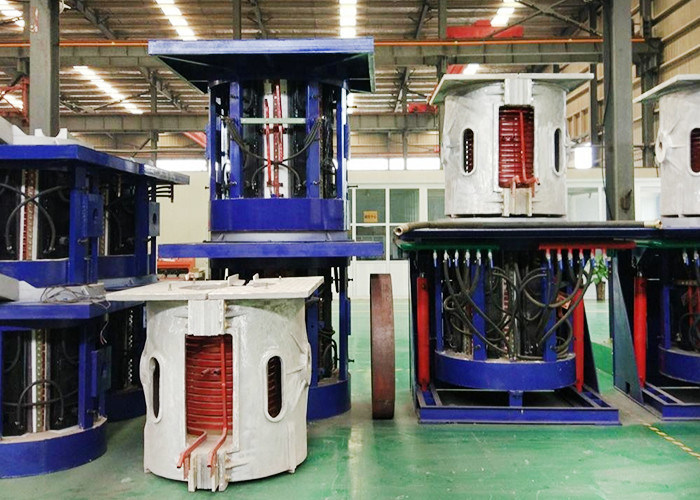

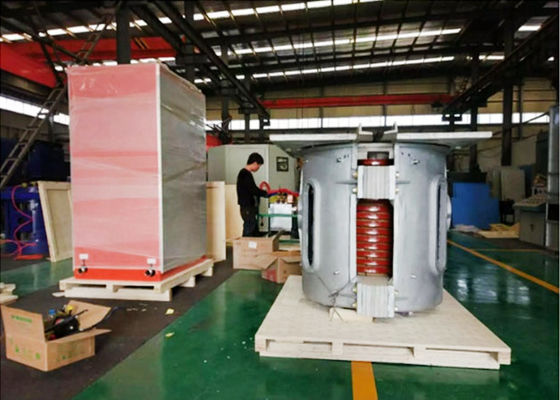

The melting furnace mainly composed of power control cabinet and melting furnace body.
The equipment can meet 24 hours of continuous work,
it have self-test function and leaking alarm device,
real-time detection of water temperature, water pressure, over-current, over-voltage, lack phase information
