Product Name: | Quartz Melting Crucible | Material:: | High Purity Quartz Crucible |
---|---|---|---|
Size:: | 3kg | Compress Strength:: | 65-135MPa |
Density:: | 1.75-1.85 G/cm3 | Sample:: | Support |
Outside Diameter: | 95mm | Height: | 102mm |
High Light: | 3kg Quartz Melting Furnace Crucible,High Strength 3kg Furnace Crucible,Gold Silver Copper Casting Cup |

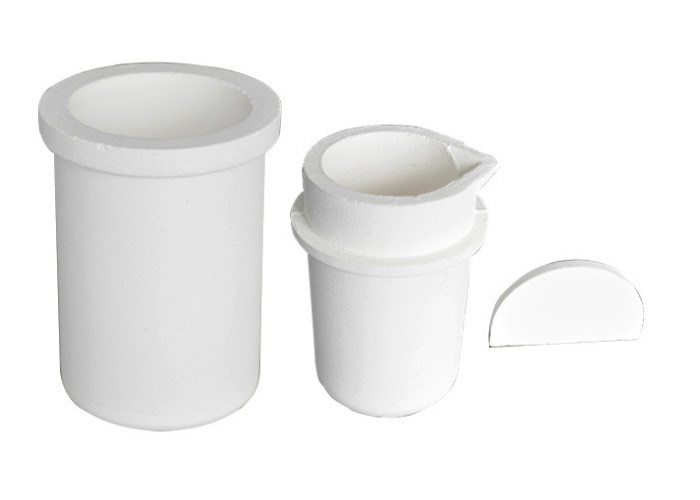

Quartz Melting Crucible Cup Furnace Melting Casting Refining Gold Silver Copper Casting Cup
It is made of refined fused quartz with modern ceramic technology, mainly used in dental alloy,The melting of platinum, gold and other high-temperature alloys can withstand high temperature of more than 2800 degrees, with high purity and corrosion resistance.High strength, high thermal shock resistance, 1100 ℃, water quenching and remains intact, long service life.
Technical Parameter of the Quartz Melting Crucible
Name | Model | Outside diameter | Outer diameter | Inter diameter | Step height | Height |
Graphite crucible | 1kg | 58mm | 46mm | 34mm | 10mm | 88mm |
Graphite crucible | 2kg | 73mm | 61mm | 48mm | 88mm | 78mm |
Graphite crucible | 3kg | 85mm | 76mm | 62mm | 10mm | 103mm |
Graphite crucible | 4kg | 84mm | 74.5mm | 56mm | 11.5mm | 136.5mm |
Graphite crucible | 5kg | 100mm | 87mm | 67mm | 12mm | 135mm |
Graphite crucible | 5.5kg | 105mm | 90mm | 74mm | 13mm | 155mm |
Graphite crucible | 6kg | 115mm | 102mm | 80mm | 12mm | 180mm |
Graphite crucible | 8kg | 124mm | 108mm | 90mm | 15mm | 183mm |
Quartz crucible | 1kg | 69mm | 55mm | 50mm | 5mm | 86mm |
Quartz crucible | 2kg | 85mm | 70mm | 63mm | 7.5mm | 86mm |
Quartz crucible | 3kg | 95mm | 87mm | 78mm | 10mm | 102mm |
Quartz crucible | 4kg | 99mm | 87mm | 80mm | 8.5mm | 133mm |
Quartz crucible | 5kg | 118mm | 100mm | 91mm | 10.5mm | 135mm |
Quartz crucible | 5.5kg | 119mm | 106mm | 93mm | 8mm | 154mm |
Quartz crucible | 6kg | 131mm | 118mm | 106mm | 10mm | 179mm |
Quartz crucible | 8kg | 144mm | 132mm | 113mm | 9mm | 184mm |
Crucibles we manufacture and supply:
