The Latest Technology Rotary Drum Resistance Furnace For Screw,Steel Ball,Nail And Bearing
Small workpiece rotary furnace
Application: This series of roller resistance furnace used for gas carburizing , carbonitriding and bright quenching on light industry, textile, instruments, electrical appliances, bearings and other industries, especially suitable for mass production of small parts, such as bicycle parts, sewing machine parts, ball bearings, roller and other parts of the heat treatment.
Characteristrc:
1. compact structure, Economic Space Occupation, high produce Efficiency
2. heating up evenly, upgrades heat treatment quality
3. Have a variety of pipe fittings, spare can realize all kinds of chemical processing
4. Furnace tilting and discharging is convenient.
Technical parameter of the Nails Hardening Machine
| Rated power | 60Kw |
| Rated voltage | 380V |
| Number of phases | 3 phases |
| Rated frequency | 50Hz |
| Rated temperature | 950℃ |
| Number of temperature control zones | 1 zone |
| Effective drum heating size | Ф500×650 |
| Equipment dimensions |
2450×2300×2150mm |
| Weight | 2960Kg |
| Heating method | high temperature resistance band |
| Productivity | 150Kg/h |
| Temperature control method | Intelligent digital display instrument and PID temperature control; with over-temperature alarm |
| Furnace temperature uniformity | ≤±8℃ (constant heat preservation stage) |
| Furnace surface temperature rise | ≤environment+30℃ |
| Temperature control accuracy | ≤±2℃ |
| Furnace structure | full fiber structure, the roof of the furnace can be lifted to facilitate the loading of the drum |
| Insulation thickness | 380mm |
| Roller rotation speed | stepless frequency conversion adjustment |

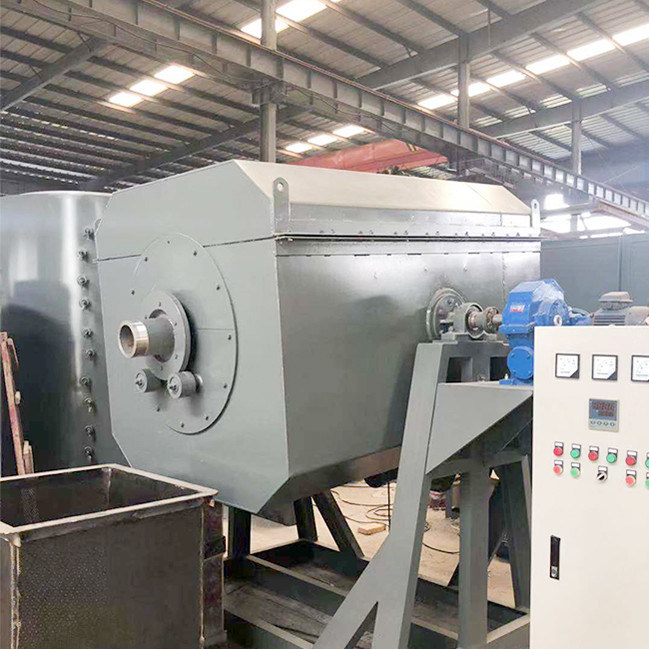

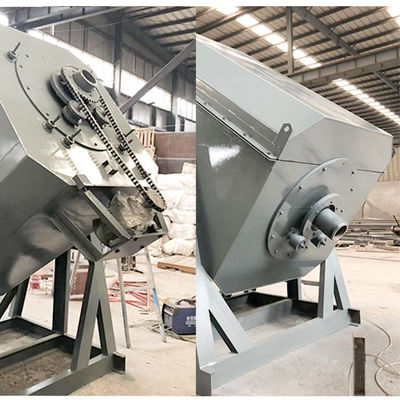

Anti-oxidation furnace show:

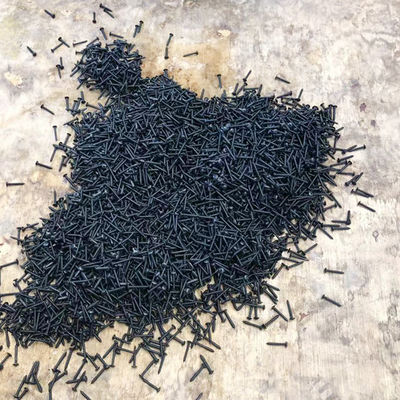

Final product show:
