| Voltage: | 220/380V | Power: | 26kw |
|---|---|---|---|
| Melting Speed: | 3-5minutes | Cooling: | Water |
| Max Temperature: | 2500 Degree | Melting Metal: | Gold,silver,copper |
| Moq: | 1 | OEM: | Accepted |
| High Light: | Portable Mini Gold Melting Furnace,5kg Mini Gold Melting Furnace,3kg mini gold melting machine |
||

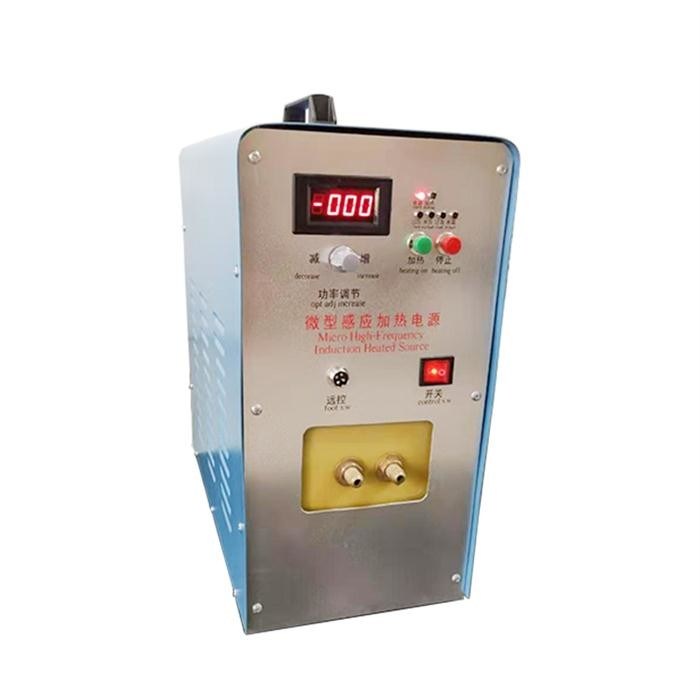

Durable Powerful 1-5kg Mini Portable High Frequency Gold Melting Furnace
Introduction of high-frequency Induction Heater Furnace
1. Simple to install, installation can be done by unprofessional person very easily.
2. Multi-display functions, with displays of over current, over voltage, water failure, phase failure and unfit lad and so on, machine can be protected from destroys and machines can be repaired easily.
3. Light weight, small size.
2.Technical Parameters of high-frequency Induction Heater Furnace
| Model | IR-26 |
| Input power desire | Single phase 220V 50HZ |
| Oscillate power max | 26KW |
| Max input current | 37A |
| Oscillate frequency | 30-100KHZ |
| Cooling water desire | >0.2MPa 2-6L/Min ≤40°C |
| Duty cycle | 80% |
| Dimensions(L*W*H) | 500*380*520mm |
| Net weight | 30kg |
| Cable length | 2-6(Meters) |
