Product Details:
Payment & Shipping Terms:
|
| Voltage: | 380V 50Hz 3phase | Power: | 70 Kw |
|---|---|---|---|
| Application: | Melting Factory Or Personal Shop | Size: | 460*270*450mm |
| Temperature: | 500-2300 Degree | Cooling Way: | Water Cooled |
| MOQ: | 1SET | OEM: | Accepted |
| Highlight: | 50kg Small Induction Melting Furnace,70kw Small Induction Melting Furnace,2300 degree Medium Frequency Furnace |
||

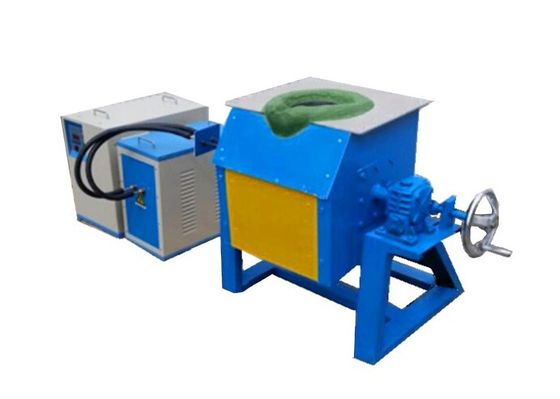

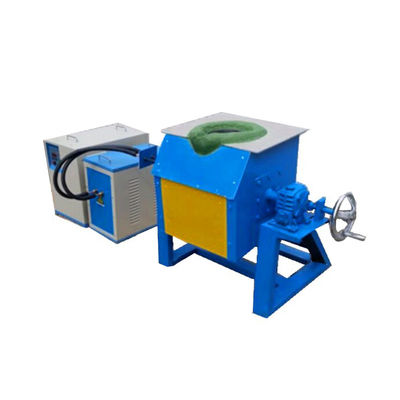

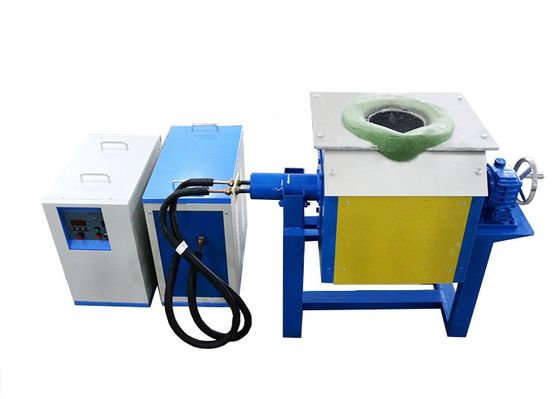

Electric medium frequency 50kg small induction melting furnace
The Characteristics of medium frequency induction melting furnace:

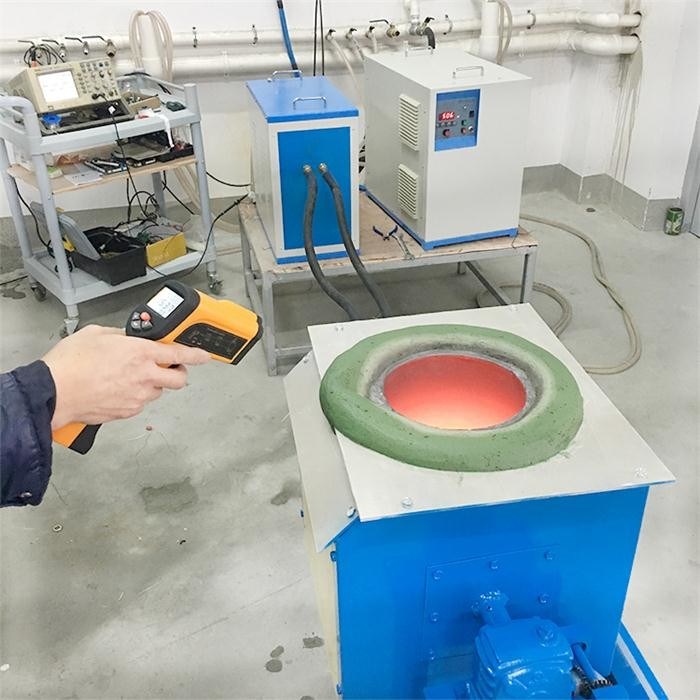

The melting machines can be used for melting steel, stainless steel , brass, aluminum, gold silver etc.Because of the stirring effect which caused by the magnetic force, the melting pool can be stirred during the melting course to ease the floating of the flux and oxides to produce high quality casting parts.Wide frequency range from1KHZ-20KHZ, working frequency can be designed by changing the coil and compensating capacitor according to the melting material, quantity, stirring effect desire, working noise, melting efficiency and other factors.When melting, the cold furnace need 50-60minutes.The hot furnace need 20-30 minutes.
Technical Parameters of IGBT Medium Frequency Induction Melting Furnace:
| Melting furnace model | Steel and stainless steel | Gold, copper,silver | aluminum |
| 30kw | 2kg | 10kg | 3kg |
| 40kw | 5kg | 20kg | 6kg |
| 50kw | 10kg | 30kg | 10kg |
| 60kw | 18kg | 50kg | 20kg |
| 80kw | 25kg | 100kg | 30kg |
| 120kw | 50kg | 150kg | 50kg |
| 160kw | 100kg | 250kg | 100kg |
We Guarantee:
1. Standard wooden case packaging.
2. Foam and plastic are used for shockproof and waterproof.
Steel belt and rivets are used to fasten the wooden case.
3. The bottom pallet can bear 3 times weight than goods.
4. Delivery time: 7-25 working days
