| Product Name: | Manual Dumping Medium Frequency Induction Melting Furnace | Voltage: | 380V 50Hz 3phase |
|---|---|---|---|
| Power: | 45kw | Application: | Melting Factory Or Personal Shop |
| Size: | 460*270*450mm | Temperature: | 500-2300 Degree |
| Cooling Way: | Water Cooled | MOQ: | 1set |
| Melting Material: | Copper | ||
| High Light: | Manual Dumping Gold And Silver Smelter,45kw Gold And Silver Smelter,Gold Medium Frequency Induction Melting Furnace |
||

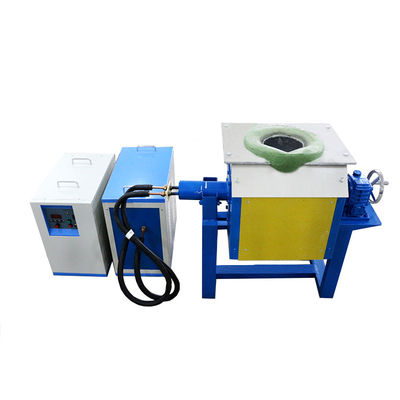

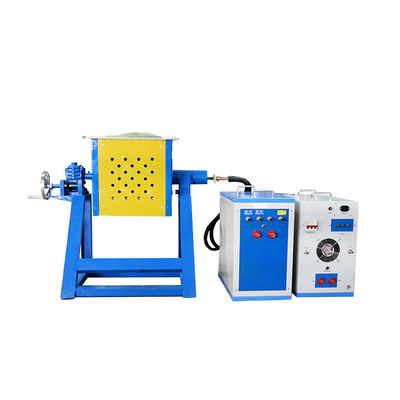

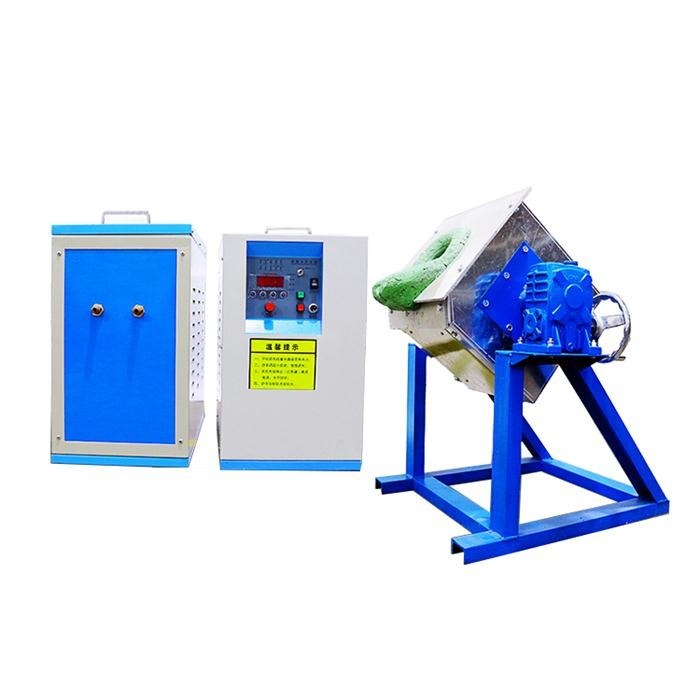

Manual dumping Medium Frequency Induction Melting Furnace
1 The composing of medium frequency induction melting furnace:
1. Medium frequency induction heating power supply
2. Melting furnace
3. Compensation capacitor
4. Infrared temperature sensor, temperature controller and water cooling system can also optional.
5. Three types of induction melting furnaces can be selected according to the way of pouring out, they are tilting furnace, push-up furnace and stationary furnace.
6. According to the method of tilting, tilting furnace is divided into three kinds: Manual tilting furnace, Electrical tilting furnace and Hydraulic tilting furnace.
Technical Parameters of IGBT Medium Frequency Induction Melting Furnace:
| Melting furnace model | Steel and stainless steel | Gold, copper,silver | aluminum |
| 30kw | 2kg | 10kg | 3kg |
| 40kw | 5kg | 20kg | 6kg |
| 50kw | 10kg | 30kg | 10kg |
| 60kw | 18kg | 50kg | 20kg |
| 80kw | 25kg | 100kg | 30kg |
| 120kw | 50kg | 150kg | 50kg |
| 160kw | 100kg | 250kg | 100kg |
We Guarantee:
1. Standard wooden case packaging.
2. Foam and plastic are used for shockproof and waterproof.
Steel belt and rivets are used to fasten the wooden case.
3. The bottom pallet can bear 3 times weight than goods.
4. Delivery time: 7-25 working days
