Product Details:
Payment & Shipping Terms:
|
| Voltage: | 220/380V | Power: | 26kw |
|---|---|---|---|
| Melting Speed: | 3-5minutes | Cooling: | Water |
| Max Temperature: | 2500 Degree | Melting Metal: | Gold,silver,copper |
| Oem: | Accepted | MOQ: | 1 |
| High Light: | 25KW Induction Heating Furnace,Induction Heating Furnace 30KHz,80KHz Desktop Metal Furnace |
||

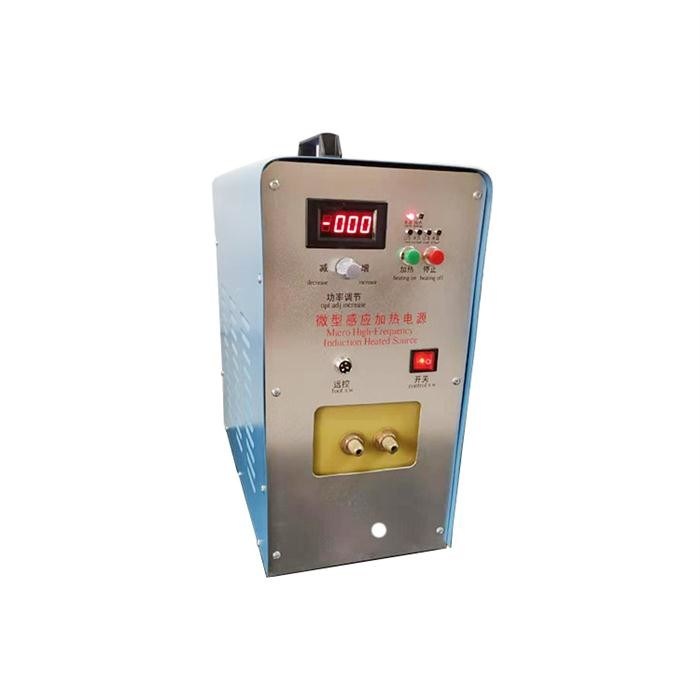

25KW (30-80KHz) Desktop High temperature high-frequency Induction Heater Furnace
Introduction of 25KW (30-100KHz) Desktop High temperature high-frequency Induction Heater Furnace
It adopts the most advanced MOS, IGBT frequency conversion control technologies to realize automatic tracking of frequency.
It has the constant current and power control function, which can significantly optimize metal heating process, realize the high efficiency and fast heating and bring into play the superior performance of the products.
It is safe and reliable, and requires no equipments of ten thousand voltage, and thus can ensure the safe operation.
It is available for infrared temperature measurement, which can realize the automatic control of temperature, improve the heating performance and simplify the manual operation.
Technical Parameters of 25KW (30-80KHz) Desktop High temperature high-frequency Induction Heater Furnace
| Model | IR-25 |
| Input power desire | Single phase 220V 50HZ |
| Oscillate power max | 26KW |
| Max input current | 37A |
| Oscillate frequency | 30-100KHZ |
| Cooling water desire | >0.2MPa 2-6L/Min ≤40°C |
| Duty cycle | 80% |
| Dimensions(L*W*H) | 500*380*520mm |
| Net weight | 30kg |
| Cable length | 2-6(Meters) |
